30' Aluminum Stacker Trailer for Sale

Product No: 11805
Model No: BSA8526TTA5
Size: 8' 8" x 30' Request More Info

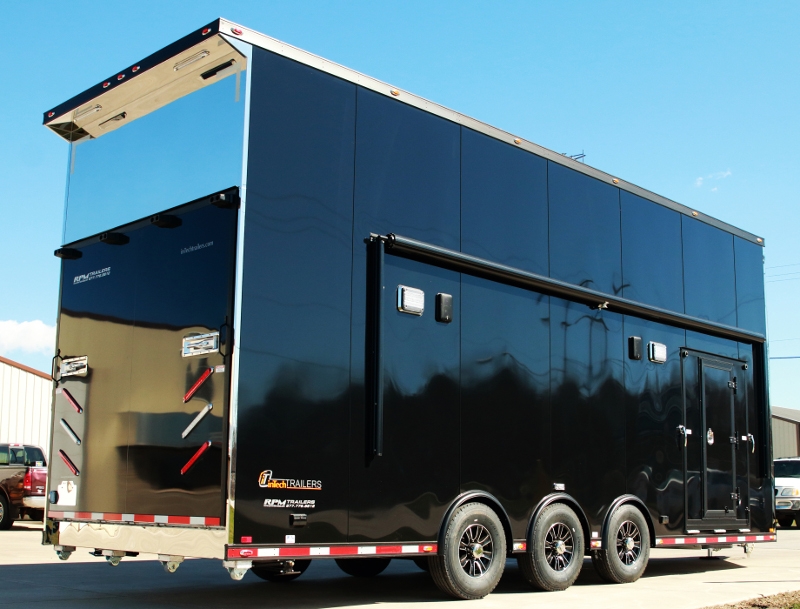

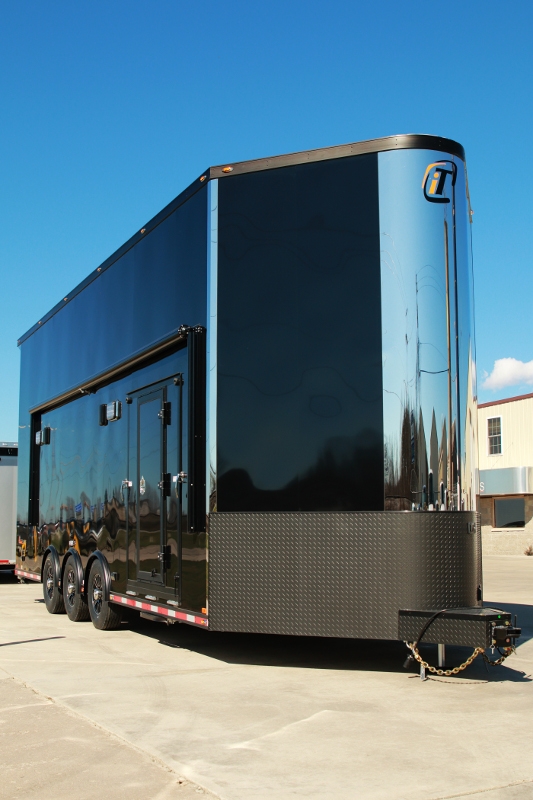

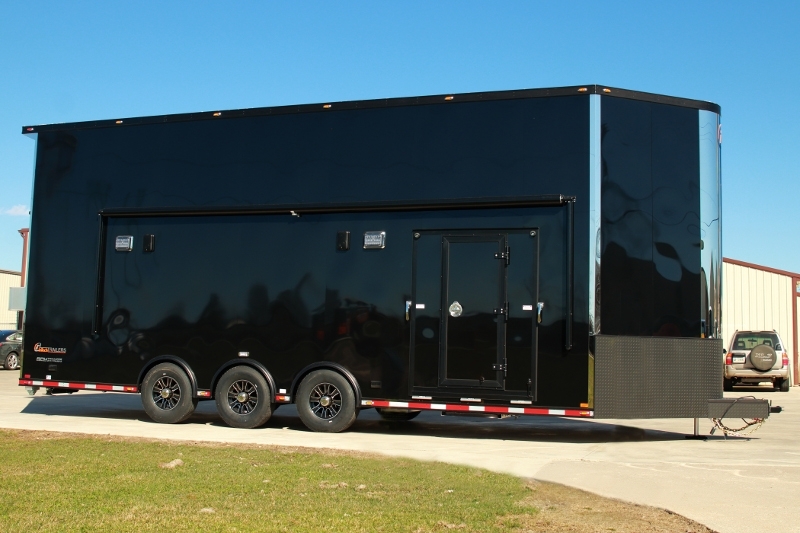

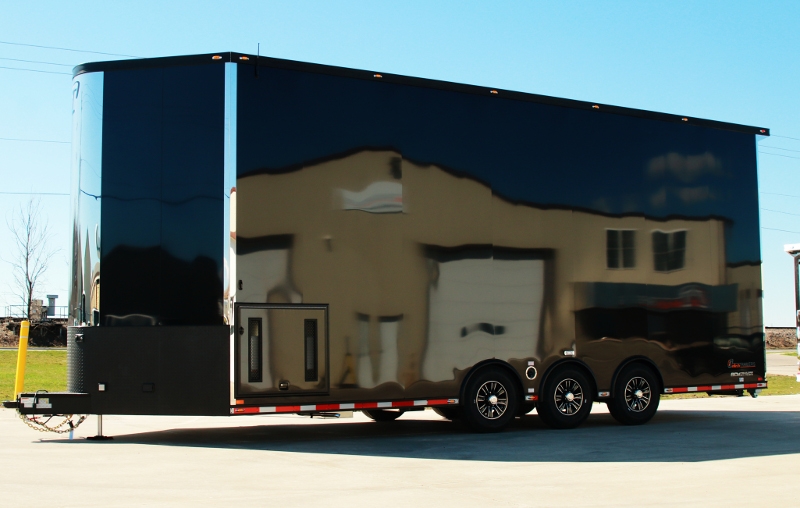

30' Stacker Trailer for Sale

A masterful performance begins with the utmost preparation… RPM Trailer sales is perfecting perfection with this all new aluminum stacker trailer.  Our instinctive individuality sets us apart from all the rest and the details are a true reflection why RPM Trailer Sales is the largest aluminum trailer dealer nationwide.
When it comes to the ultimate custom aluminum trailer, every detail delivers your personal perfection when designed by RPM Trailer Sales. When you open the 99.5" Rear Ramp Door Opening on this black beast, you will not be disappointed. This 30’ stacker trailer is loaded with options including custom cabinets that include a 7 drawer tool chest, in floor winch, electrical package, 5.5KW Onan Generator Package, and so much more.  RPM Trailer Sales always strives to find new ways to make our custom stacker trailer designs exceed your expectations. We never get tired of designing the absolute finest custom trailers in today’s market place! When you're ready to take the next step for a custom aluminum stacker trailer..... look no further than RPM Trailer Sales. We're certain you'll be impressed with our unmatched customer service and experience.  With an RPM Custom Trailer design, you will experience the quality, fit, and finish and the attention to detail & tow-ability like no other.   But most importantly, you will be amazed at just how affordable an all-aluminum Stacker Trailer can be! Take the next step and experience a custom stacker trailer design by RPM Trailer Sales.  Contact us today at 706-654-2882 for details.
“Often Imitated – Never Duplicated”

GVWR: 21,000 lbs.
Shipping Weight: 9,150 lbs.
Width: 8.5
Length: 30’ (26’ + 4’ Wedge)
Interior Height: 11' 4” Interior Height
Axle Type: Triple 7,000 lbs. Dexter Torsion Axles

Model: BSA8526TTA5
Product Number: 11805

30’ Stacker Trailer Standard Features:
Chassis

Full Perimeter Aluminum Frame
All Tube Construction
Triple Tube A-Frame
Dexter Torsion Axles
Electric Brakes - All Axles
Breakaway Battery Kit
7-Way Trailer Plug
2 5/16" Ball Coupler
Safety Chains w/ Storage Loop
Hydraulic Front Jack
16" O/C Floor Crossmembers
16" O/C Wall Studs
16" O/C Roof Studs
Smooth Aluminum Wheel Boxes
Spread Axle Design w/ Individual Fenderettes
ST235/85R16 Nitro Filled Tires w/ Steel Wheels

Interior
Extruded Aluminum Floor
Extruded Aluminum Ramp
16" Aluminum Transition Flap
6) 12V LED Dome Lights w/ Switch
.030 Screwless Aluminum Walls and Ceiling
10' Standard Interior Height
8) 5000# Recessed D-Rings
3' Interior Beavertail

Exterior
.040 Aluminum Skin - Screwless/Rivetless Aluminum Exterior
One Piece Aluminum Roof
Arched & Trussed Walk-On Service Roof
4" Upper and Lower Rub Rail
LED Premium Clearance Lights
Dual LED Slimline Tail Lights
LED Slimline Backup Lights
36" ATP Stoneguard
36" 405 Series Entrance Door
FMVSS Premium Entrance Door Latch
Stainless Steel #8 High Polish Front Verticals & Radius
Polished Cast Aluminum Corners
Rear Ramp Door w/ Gapless Continuous Hinge
Stainless Steel Rear Paddle Latches - Rear Skid Plates

Stacker Trailer Features

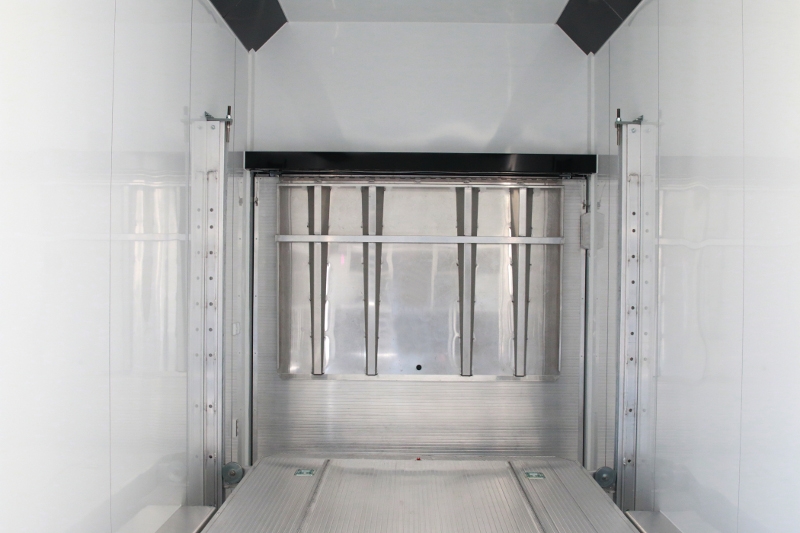

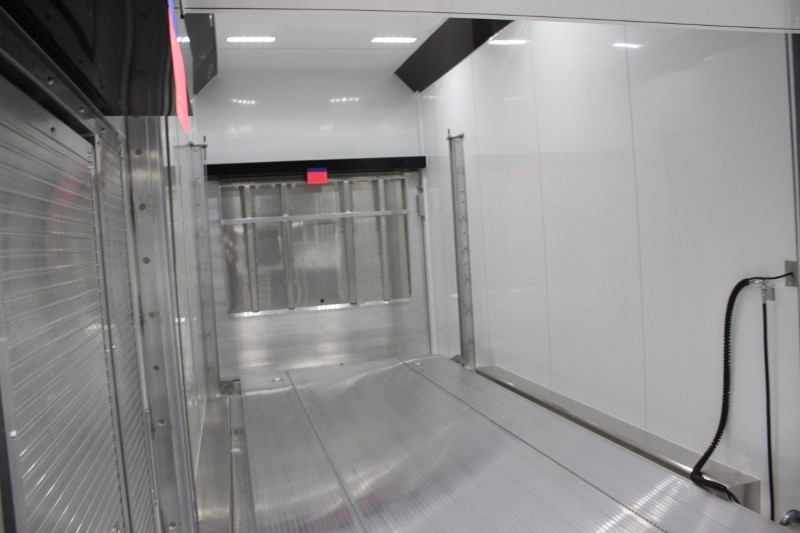

14' Aluminum Split Rail Lift (4000# Capacity)

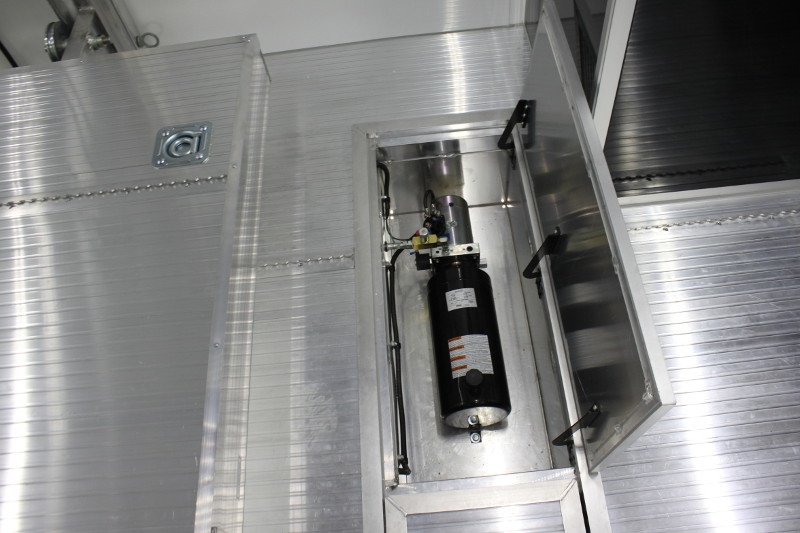

In Floor Hydraulic Lift Pump
2) 12V Deep Cycle Batteries w/ Vented Boxes
In Floor Battery Compartment
15A Motorbase Plug
45 Amp Converter Battery Charger
Rear Manual Stabilizer Jacks
Tongue Weight Scale
Underside of Lift Finished w/ .030 Aluminum

Upgraded and Additional Added Selected Options:
Upgrade to Recessed Stainless Steel Latches into Ramp Door From Paddle Latches- Pair
Upgrade to .050 Exterior Aluminum
Stainless Steel Rear Header & Posts -  #8 High Polish
Insulated Walls & Ceiling - R4 Rated
Upgrade to 11'4" Interior
18" LED Light Integrated into Bottom of Lift
Upgrade to Dragster Lift - Up to 23' Overall Length
Integrated Ramps on Rear of Lift - Additional Extension on Front of Lift
Full Extruded Aluminum Floor
Upgrade Lift Floor for Use w/ Recessed Airline Track
Upgrade to 4' Wedge
Wedge Nose Upper Aluminum Cabinet Straight Across - Up to Full Depth
Wedge Nose Lower Aluminum Cabinet Straight Across - Up to Full Depth
Delete Beavertail

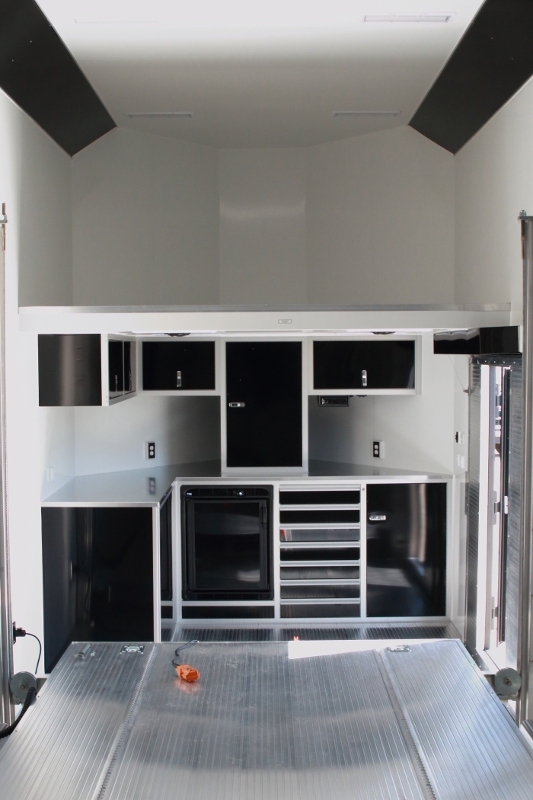

9’ Heavy Duty Attic w/ Matching Flooring - Rated at 55 Lbs./Sq Ft Up to Maximum of 4,000 Lbs.
2) Rear Caster Wheels – Pair
Spare ST235/85R16 on Steel Wheel
Upgrade to Aluminum Wheel – Including Spare

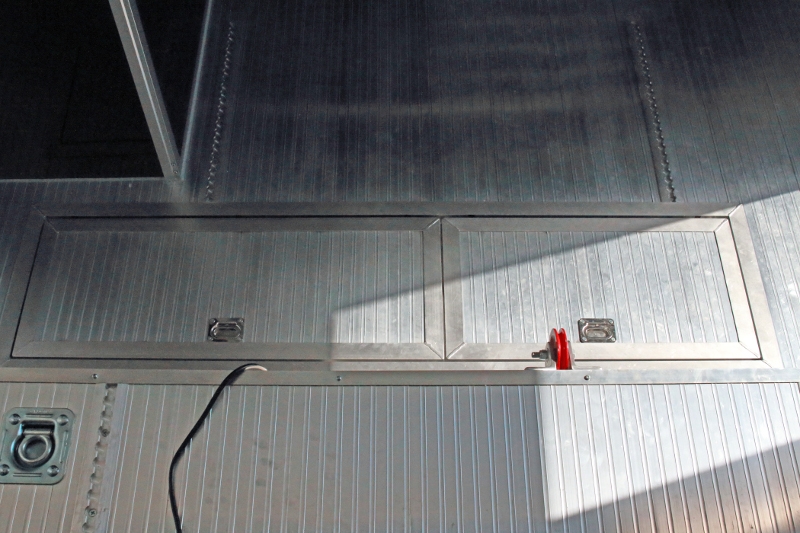

In Floor Spare Tire Compartment
Upgrade Standard Side Door to 58" Ramp -  Matches Interior Floor
Add 28" Entrance Door to Side Ramp Door
Add Slideout Aluminum Step - Non-Slip
Upgrade Side Ramp Door to Stainless Steel Paddle Latches from Barlocks
Add 5' Aluminum Ramp Extension - 84" Wide w/ 4" Bumpers

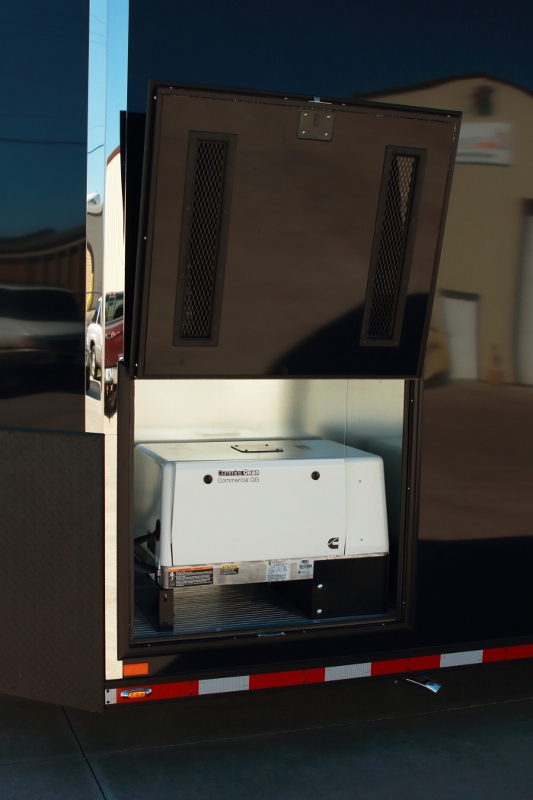

5.5KW Onan Generator Package (120V/240V) – Gasoline
In Frame Fuel Tank
Interior Insulated Generator Compartment

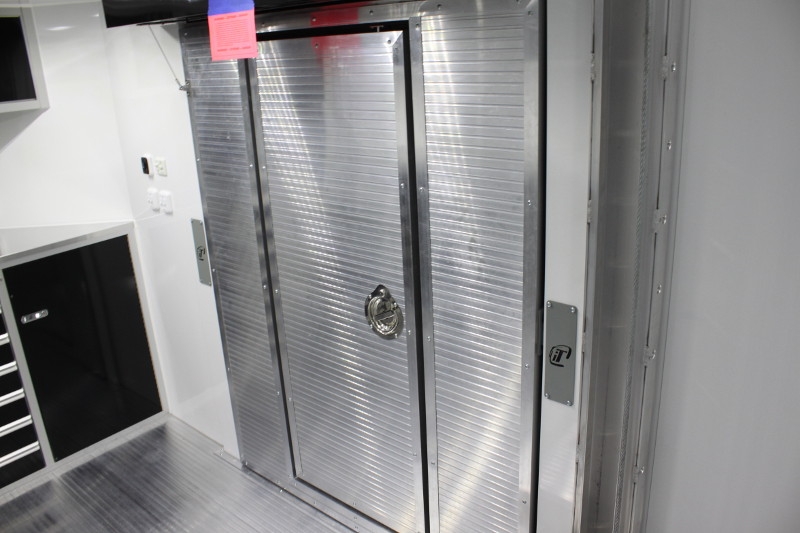

40" x 36" 405 Series Vented Gen Door
Automatic Transfer Switch
12V Marine Grade Battery in Vented Box
Remote Start, Fuel Gauge & Hour Meter
Add Jumper Blocks for 12V System for Use When Battery is Dead
Add 50 Amp Electrical Service Package
Motorbase Plug - 25' Shore Cord
12V Fuse Panel - 60 Amp 12V Converter / Battery Charger
Requires 240V Panel Upgrade to Use 240V
6) 120V 15A Recept - GFI Protected Where Required
3) 3 Way Light Switches (Pair)

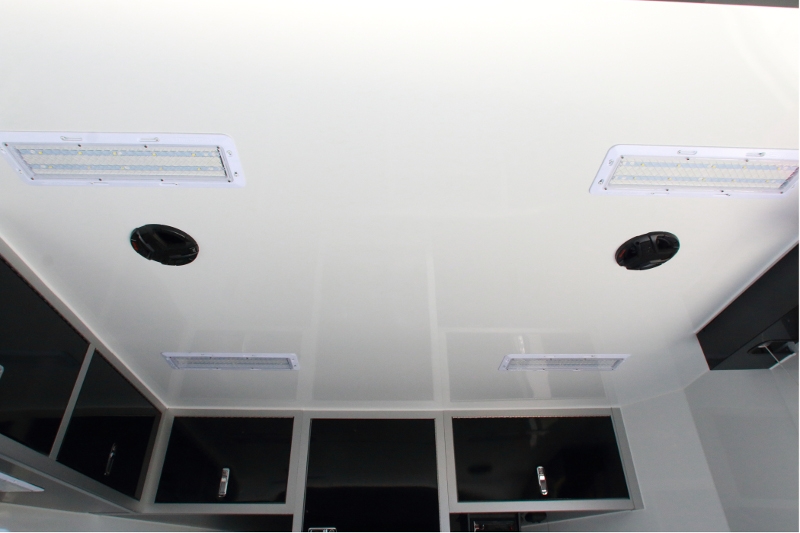

10) 12V 18" LED Interior Light
Upgrade 6) Standard LED Dome Light to 12V 18" LED Light
10) Additional LED Clearance Lights
Side Mount LED Turn Signal/Clearance and Turn Combo (Pair)
2) Whelen 12V Exterior LED Scene Light - 900 Series

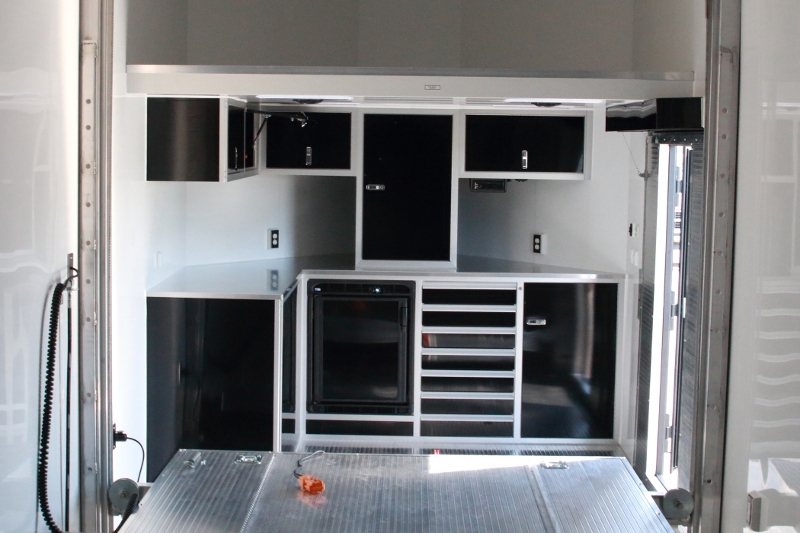

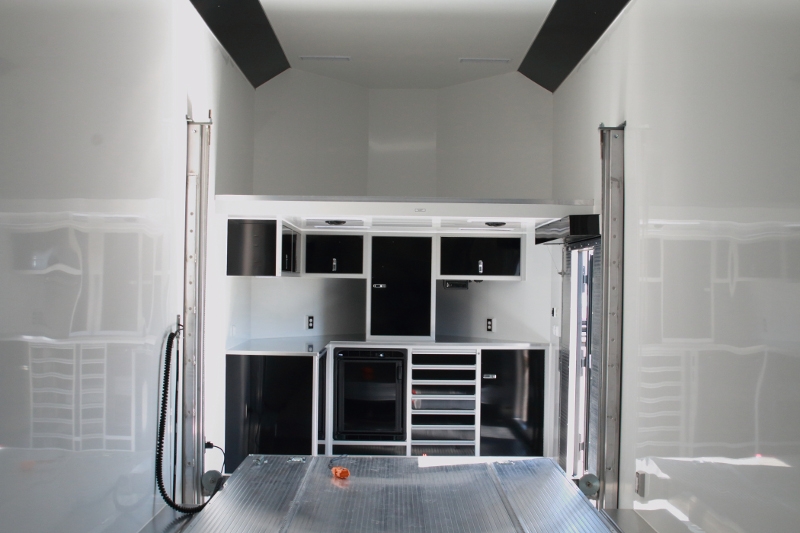

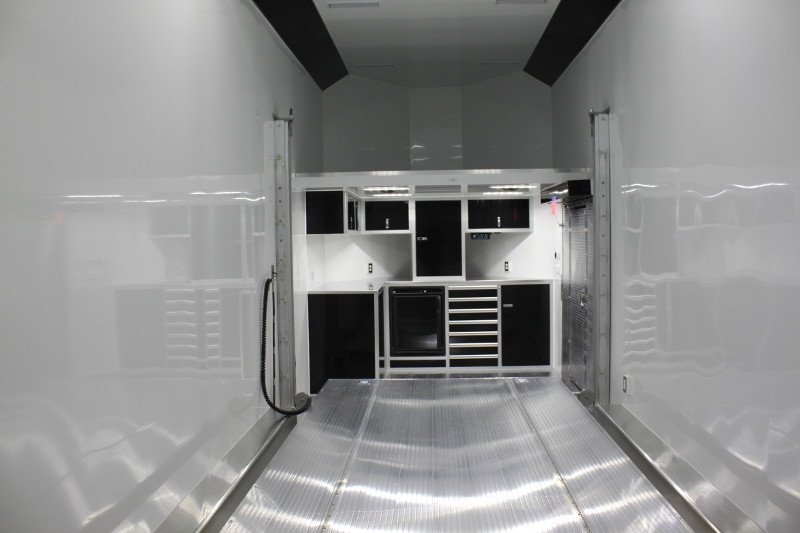

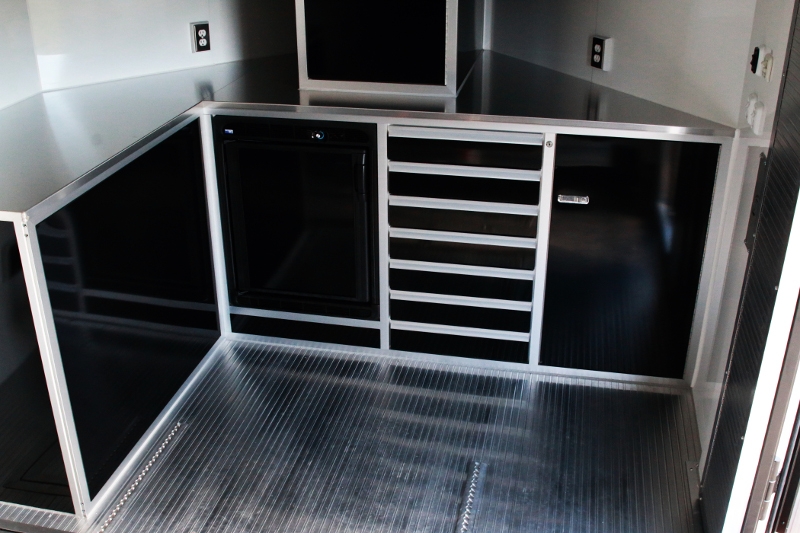

7 Drawer Tool Chest Bank to Lower Cabinet w/ Clear Anodized Trim
Add Aluminum Dresser Closet to Lower Cabinet

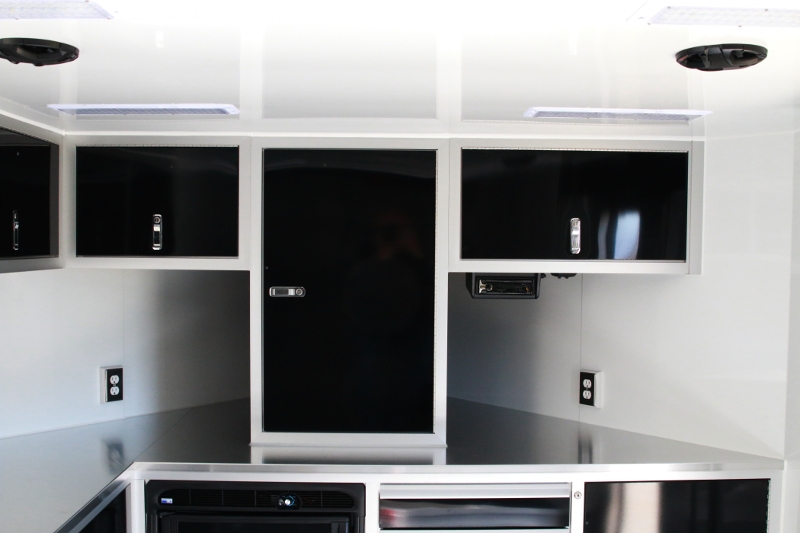

4' Premium Upper Aluminum Cabinet w/ Clear Anodized Trim
Airline Track – Recessed

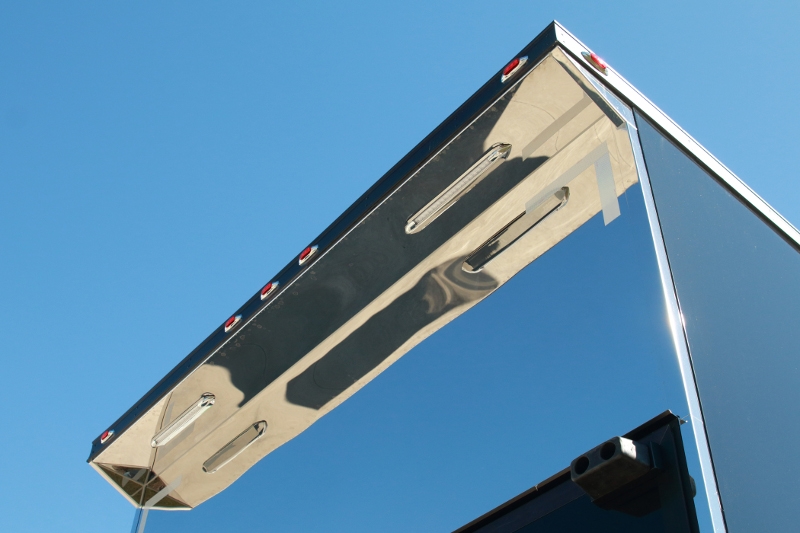

Color Matched Rear Spoiler w/ 2) Integrated LED Loading Lights
Black Anodized Exterior Package

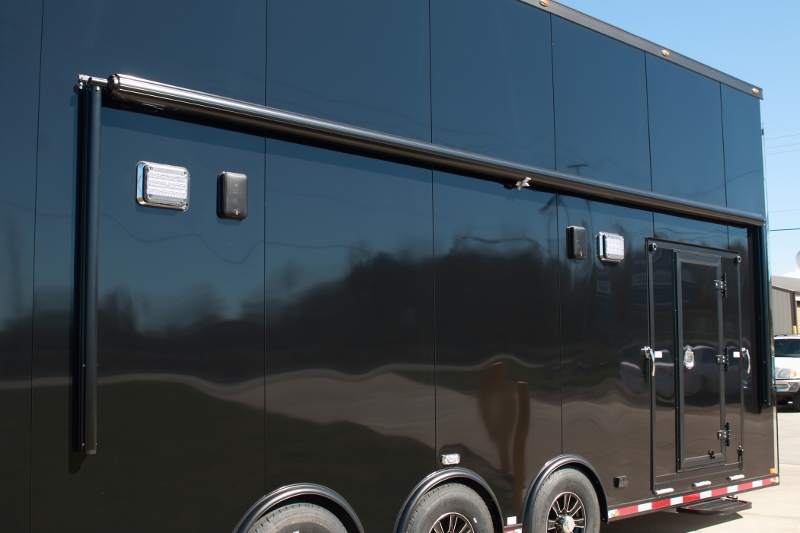

21' Dometic 12V Power Awning w/ Weathershield
In Floor Winch Box w/ Pulley - Angled Mount

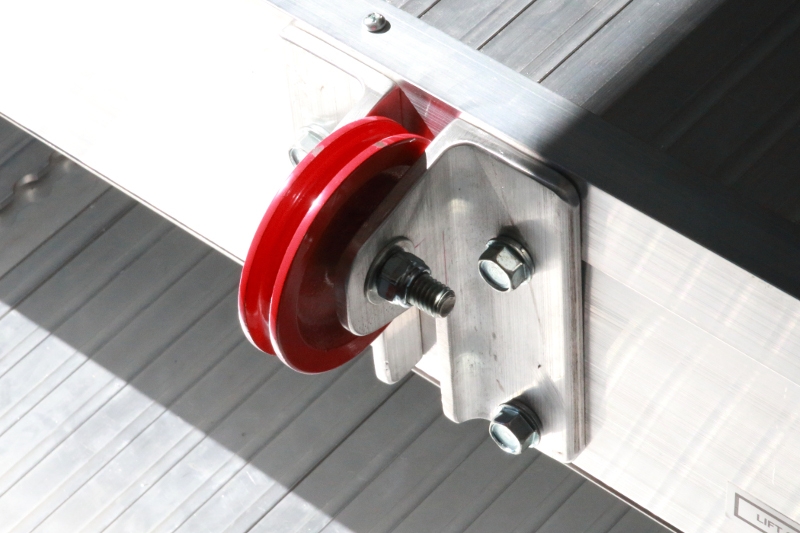

2) Pulleys on Lift For Winch Operation
4,000 lb. Winch w/ Wireless Remote Control & Synthetic Rope

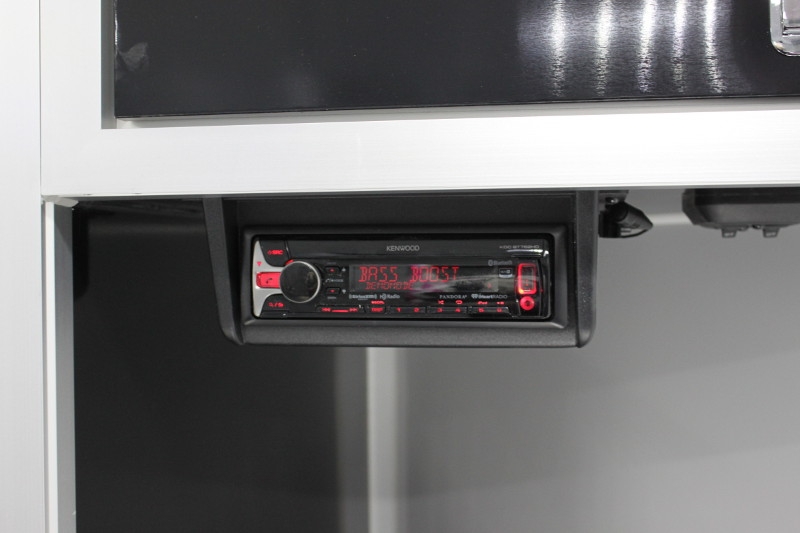

AM/FM/CD Bluetooth Stereo w/ 2) Interior Speakers & 2) Exterior Speakers
Add Refrigerator - 3.6 Cubic Ft - 2 Way (12V , 120V)
104" Wide Body With 99.5" Rear Ramp Opening Width
Custom Black Anodized Package for Stacker
28" Side Door from Challenger that is built into Ramp Door will have Powder coated Trim/Hinges
