24' Custom Aluminum Stacker Trailer

Product No: 11521
Model No: BSA8524TTA5
Size: 8' 6" x 24' Request More Info

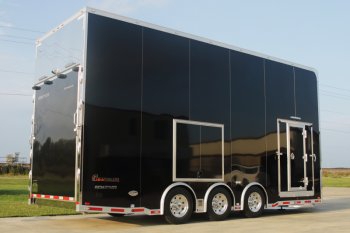

24’ Custom Aluminum inTech Stacker Trailer

RPM Custom Stacker Trailers, RPM is committed to satisfying the unique needs of each of our customers by providing a premium quality custom product at an affordable price. We take pride in the fact that we bring into the world the best custom stacker trailers money can buy. Making sure that each part of the trailer, no matter how insignificant, is of the highest quality possible.  We create a trailer that is more than just the sum of its parts, we create the best custom aluminum trailer for your needs.
Brad Sellers, our custom stacker specialist designed this custom stacker trailer specifically for the owner’s needs. This incredible 24’ car hauler has a little bit of everything under the roof. Featuring 2 escape doors for getting out of your car & allowing great access for tying them down.  The black base and upper cabinets make a bold statement.   Stereo Package and no shortage of lights inside or outside for this beauty, it’s loaded with LED’s.  We’ve got 34” high carpet on interior walls and much more.   If you haven't already, take a good look at the extreme value that RPM Trailer Sales offers, you might just be surprised at just how much trailer you can get for your hard-earned dollar.
Why choose anyone else for your next custom aluminum car hauler!  Contact us today for details at 706-654-2882!  “Often Imitated – Never Duplicated”

GVWR: 21,000 lbs.
Shipping Weight: 7,910 lbs.
Width: 8.50
Height: 11' 4"
Axle Type: 3) 7,000# Torsion Axles


Model: BSA8524TTA5
Product Number: 11521


24’ Aluminum Stacker Trailer Specifications:
Chassis
Full Perimeter Aluminum Frame
All Tube Construction
Triple Tube A-Frame
Dexter Torsion Axles
Electric Brakes - All Axles
Breakaway Battery Kit
7-Way Trailer Plug
2 5/16" Ball Coupler
Safety Chains w/ Storage Loop
Hydraulic Front Jack
16" O/C Floor Crossmembers
16" O/C Wall Studs
16" O/C Roof Studs
Smooth Aluminum Wheel Boxes
Spread Axle Design w/ Individual Fenderettes
ST235/85R16 Nitro Filled Tires w/ Steel Wheel

Interior

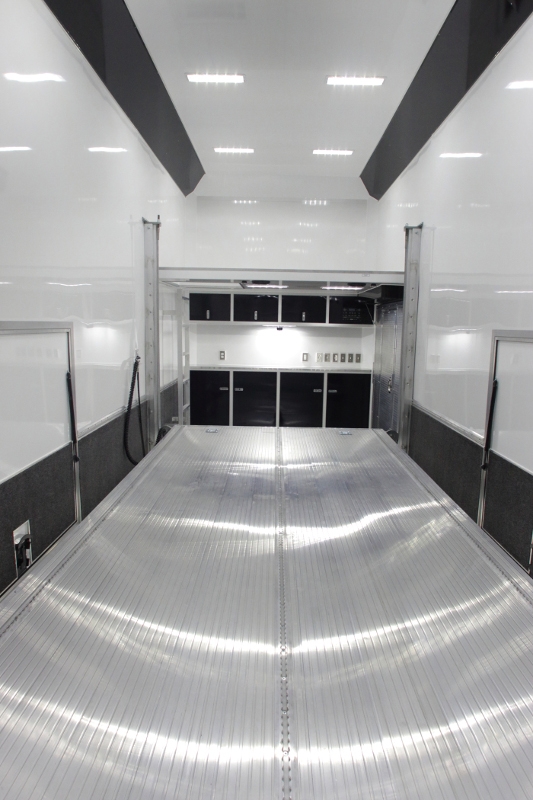

Extruded Aluminum Floor
Extruded Aluminum Ramp
16" Aluminum Transition Flap
6) Dome Lights
.030 Screwless Aluminum Walls and Ceiling
10' Standard Interior Height
8) 5000# Recessed D-Rings
3' Interior Beavertail

Exterior
.040 Aluminum Skin
Screwless/Rivetless Aluminum Exterior
One Piece Aluminum Roof
Arched & Trussed Walk-On Service Roof
4" Upper and Lower Rub Rail
LED Premium Clearance Lights
Dual LED Slimline Tail Lights
LED Slimline Backup Lights
36" ATP Stoneguard
36" 405 Series Entrance Door
FMVSS Premium Entrance Door Latch
Stainless Steel #8 High Polish Front Verticals & Radius
Polished Cast Aluminum Corners
Rear Ramp Door w/ Gapless Continuous Hinge
Stainless Steel Rear Paddle Latches
Rear Skid Plates


Stacker Features

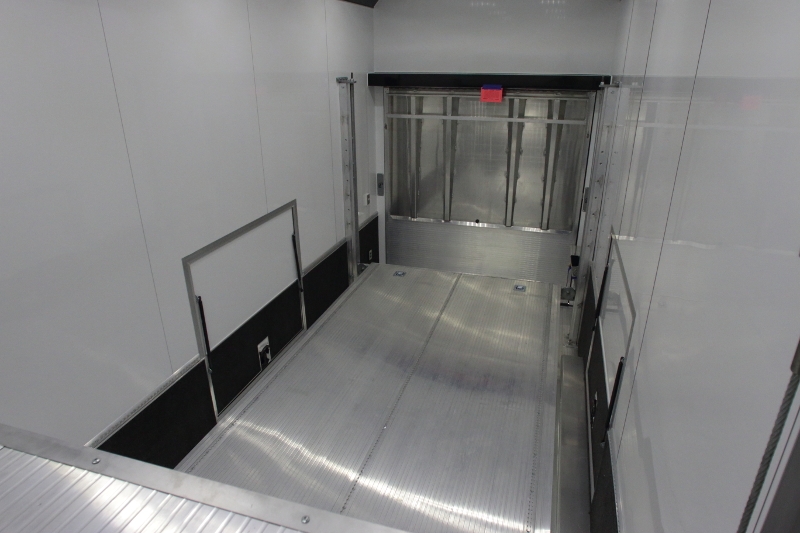

14' Aluminum Split Rail Lift (4000# Capacity)
In Floor Hydraulic Lift Pump
2) 12V Deep Cycle Batteries w/ Vented Boxes
In Floor Battery Compartment
15A Motorbase Plug
45 Amp Converter Battery Charger
Rear Manual Stabilizer Jacks
Tongue Weight Scale
Underside of Lift Finished w/ .030 Aluminum

Additional Selected Options:
Upgrade to .050 Exterior Aluminum
Stainless Steel Rear Header & Posts - #8 High Polish
Upgrade to 11'4" Interior
Add 18" LED Light Integrated into Bottom of Lift
Upgrade to Full Floor Aluminum Lift
Upgrade Lift Floor for Use w/ Recessed Airline Track
Decrease Beavertail Size

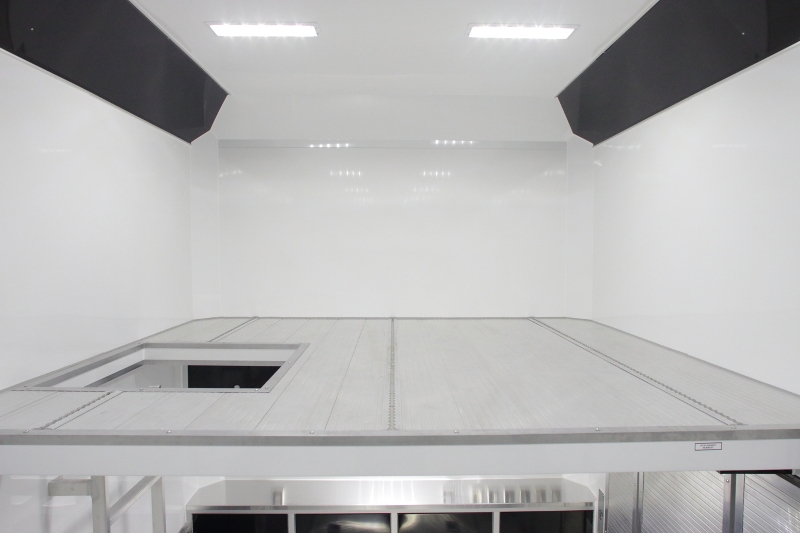

7’ Light Duty Attic w/ Matching Flooring
Ladder & Hatch to Attic - Permanent Mount
Rear Caster Wheels – Pair
In Floor Spare Tire Compartment
Upgrade Standard Side Door to 58" Ramp -  Matches Interior Floor
Add 28" Entrance Door to Side Ramp Door

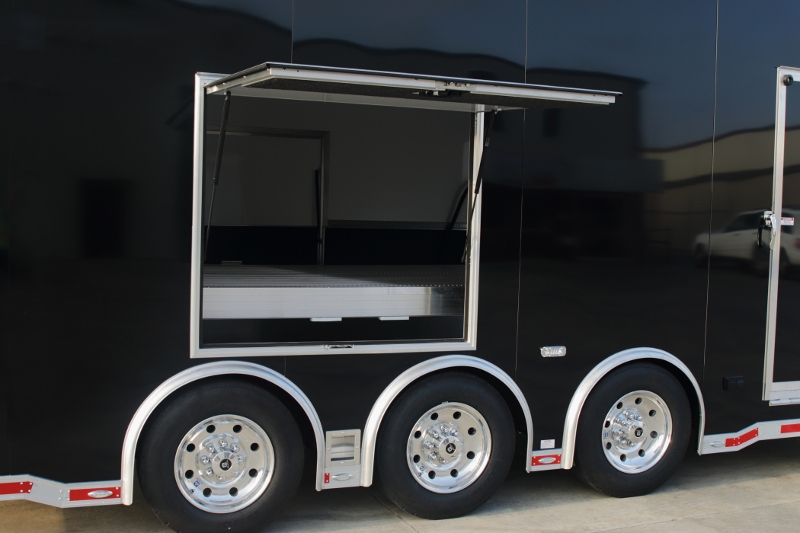

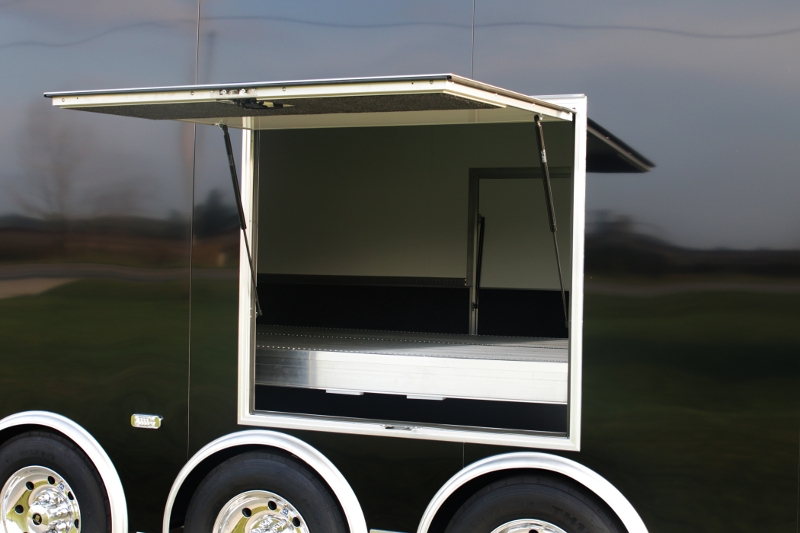

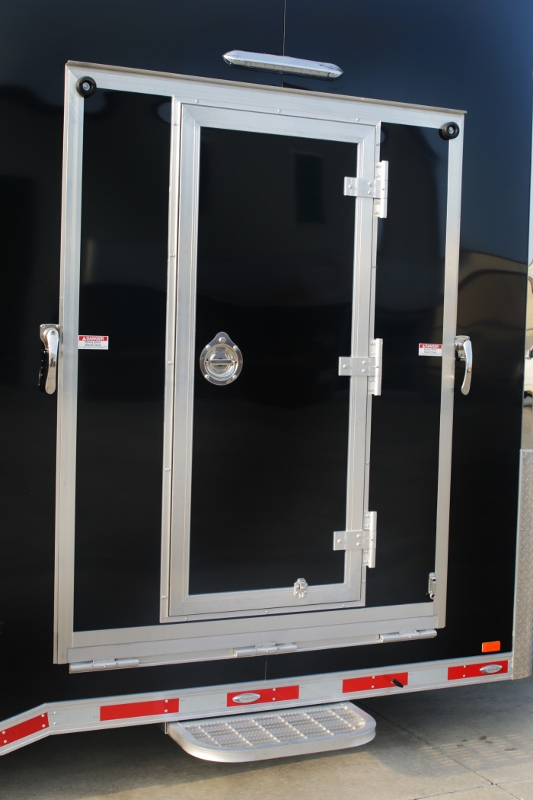

2) 54" x 48" 405 Series Top Hinged Escape Door w/ Gas Shocks & FMVSS Lock
Add Slideout Aluminum Step - Non-Slip
2) Escape Door Access Step Integrated into Fender Area
Upgrade to Stainless Steel Paddle Latches from Barlock
Upgrade to Heavy Duty Rear Ramp Door
Add 5' Aluminum Ramp Extension - 72" Wide w/ 3" Bumpers
Add 50 Amp Gen Prep w/ Transfer Switch
Generator Slides for Portable Gen w/ Gen Shelf
Add Jumper Blocks for 12V System for Use When Battery is Dead
Add 50 Amp Electrical Service Package
- Motorbase Plug
- 25' Shore Cord
- 12V Fuse Panel
- 60 Amp 12V Converter / Battery Charger
- Requires 240V Panel Upgrade to Use 240V
5) 120V 15A Recept - GFI Protected Where Required
10) Add 12V 18" LED Interior Light
Upgrade 6) Standard Dome Light to 12V 18" LED Light
Upgrade to Panelite Clearance & Tail Lights
18) Add Panelite LED Clearance Light
Add Panelite Backup Lights – Pair
Side Mount LED Turn Signal/Clearance and Turn Combo (Pair)
Add 12V LED Docking Back Up Flood Lights (Pair)
3) Add 12V MAX Loading /Tie Down LED 18" Light
34" High Carpet on Interior Walls

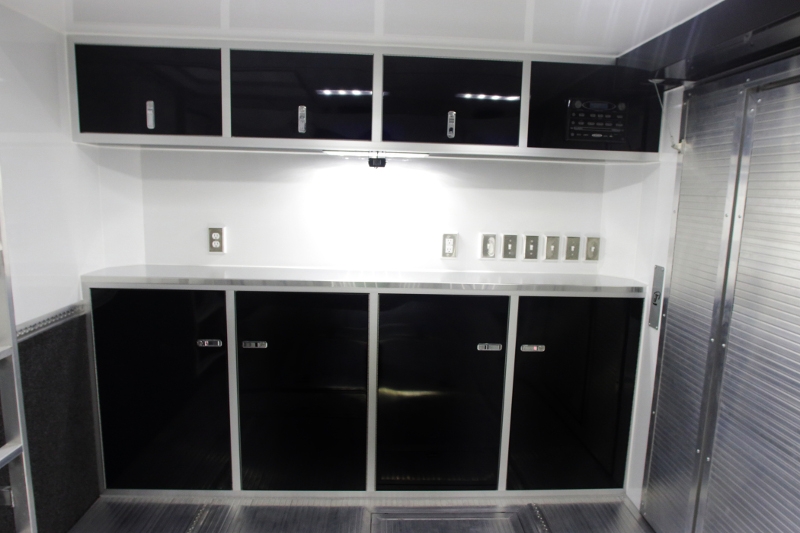

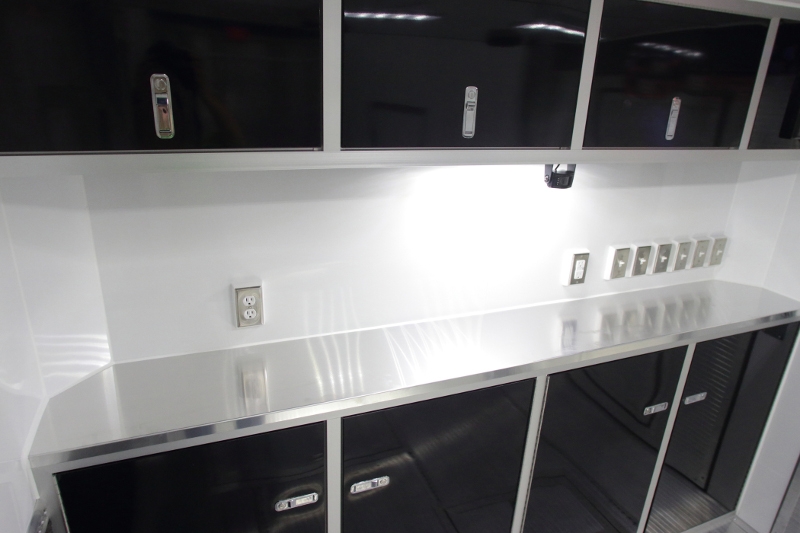

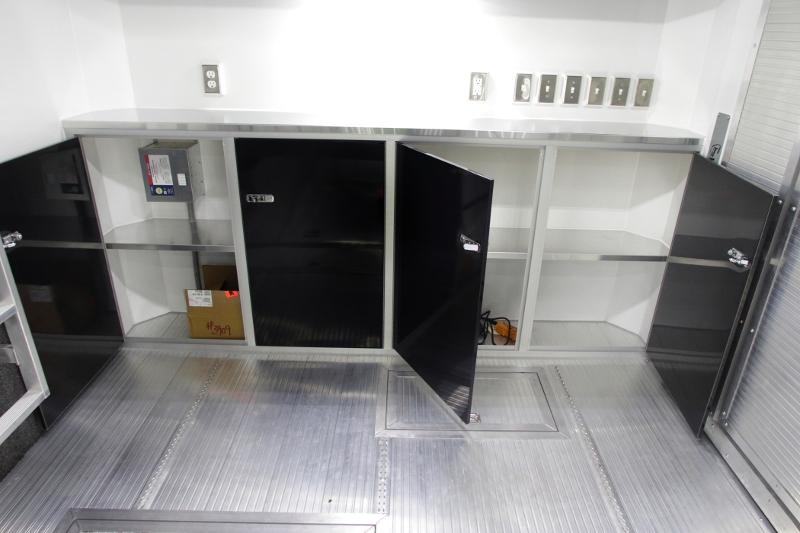

8' Premium Lower Aluminum Cabinet w/ Clear Anodized Trim

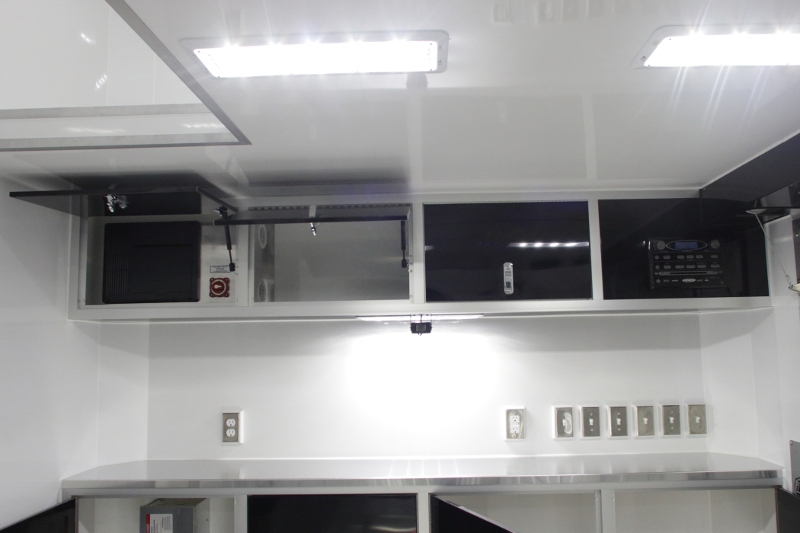

8' Premium Upper Aluminum Cabinet w/ Clear Anodized Trim
24’ Airline Track - Surface Mounted
117’ Airline Track - Recessed
ATP Tongue Cover
Upgrade to Lowered Skirt w/ Reverse Beavertail Design - Triple Axle
In Floor Winch Box w/ Pulley - Angled Mount
4,000lb.  Winch w/ Wireless Remote Control & Synthetic Rope

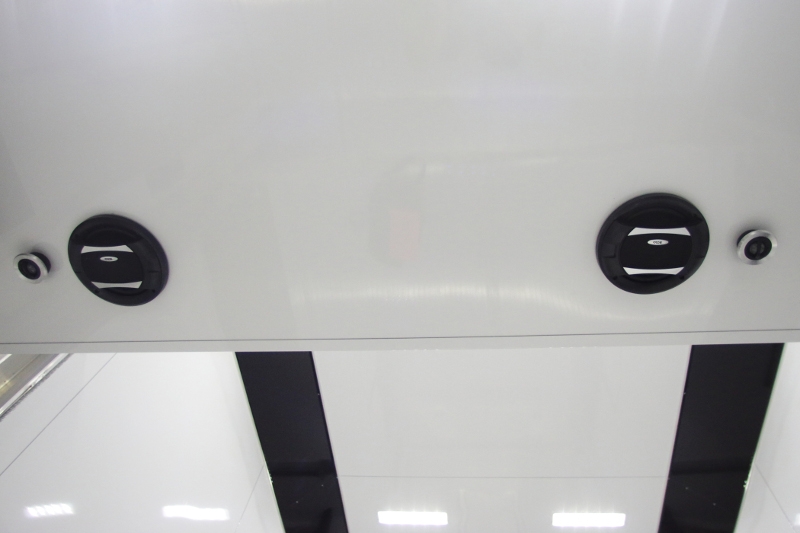

AM/FM/CD Stereo w/ Four Interior Speakers
Upgrade Interior Speakers to Component w/ Separate Tweeter

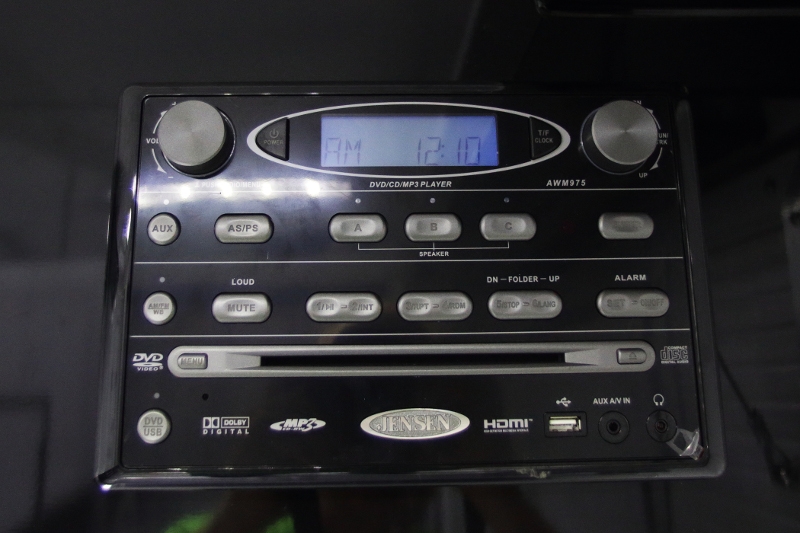

Upgrade Stereo to Double Din On Cabinet Face - Jensen AWM 975

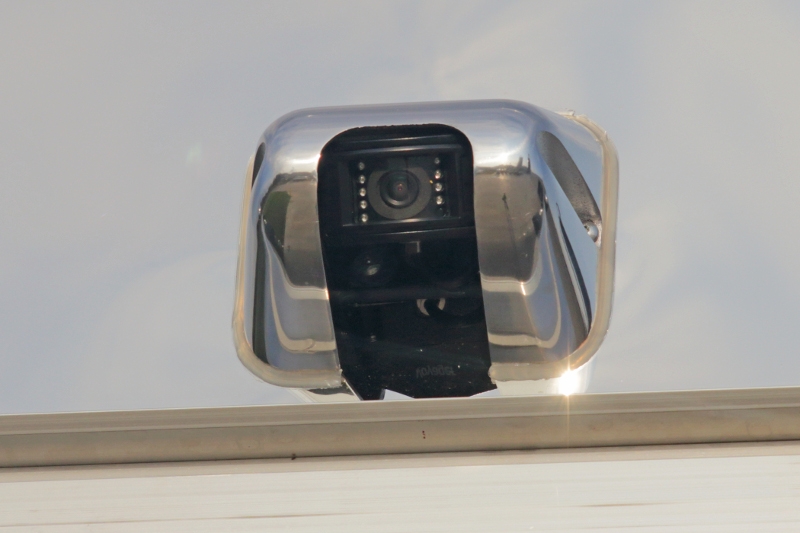

Install 2) Customer Provided Single Backup Camera

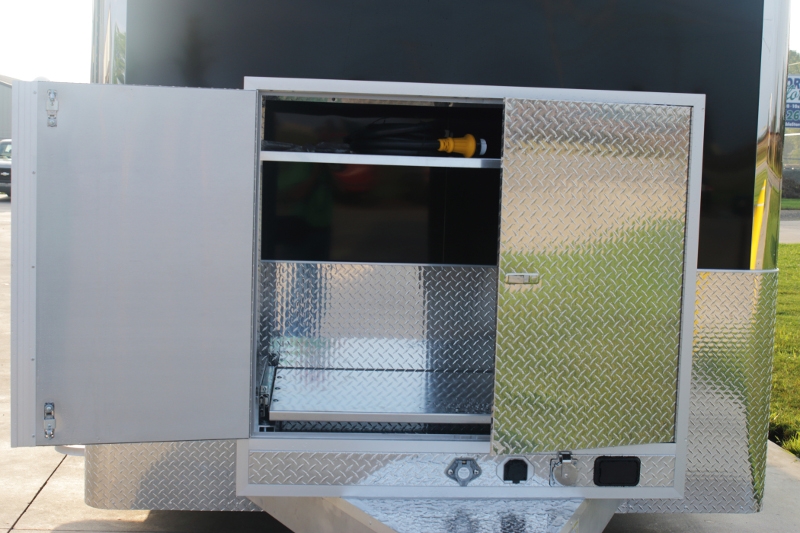

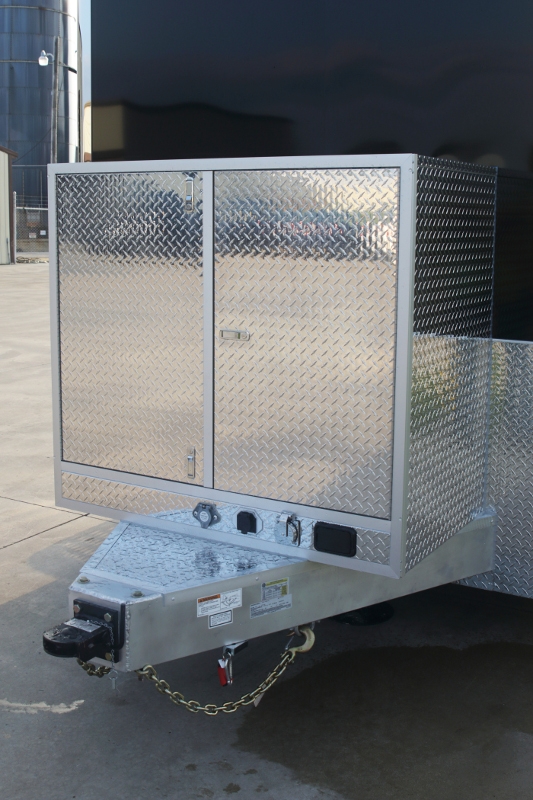

Tongue Mounted Generator Compartment
Shelf in Generator Box on Tongue for Shore Cord Storage
Add Custom Shore Cord/Hitch Recepts
Upgrade to Alcoa Wheels & 17.5 Tires
