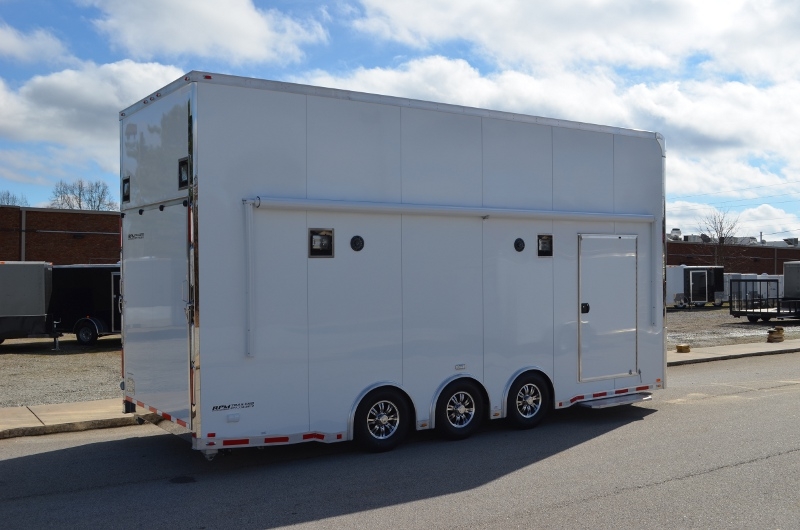

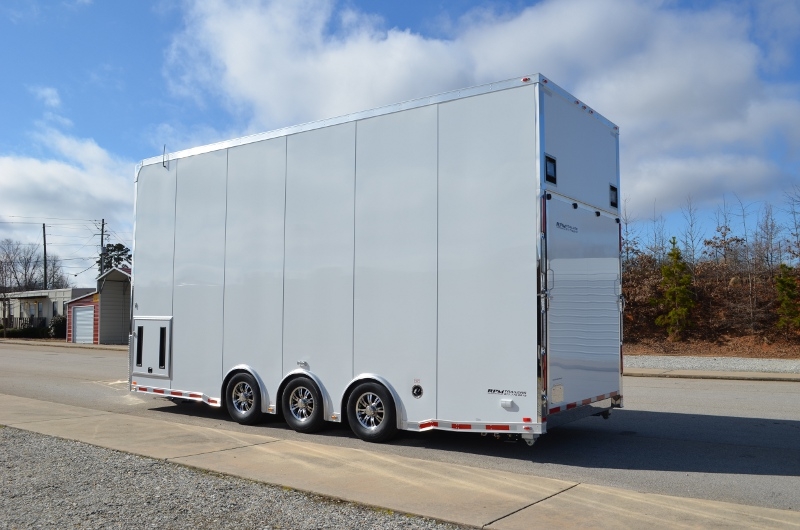

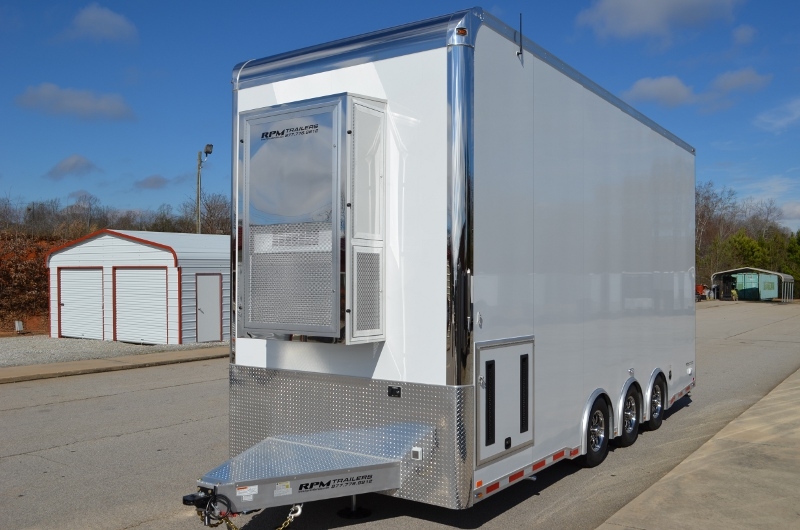

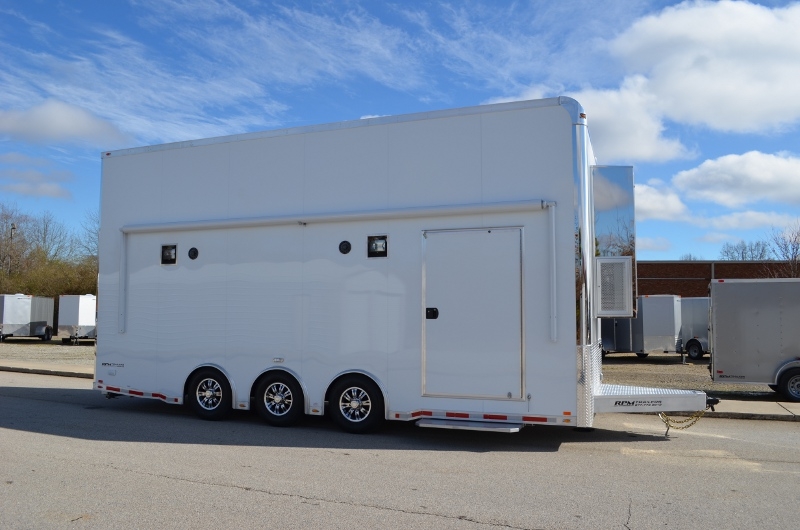

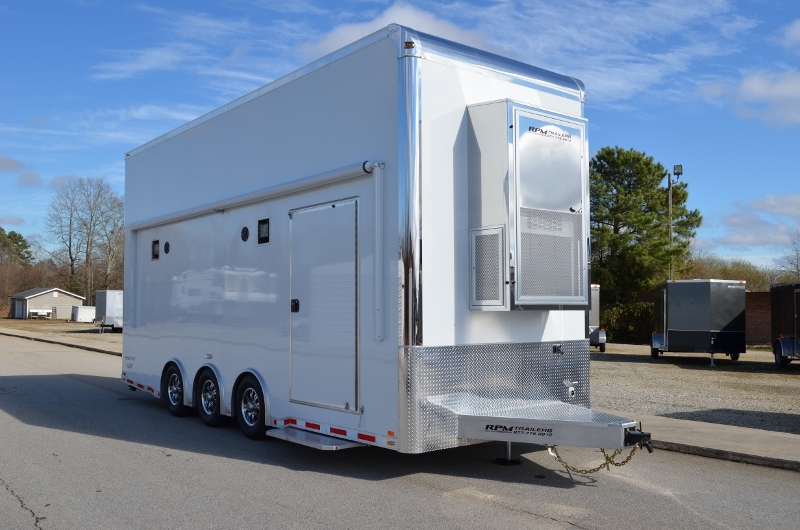

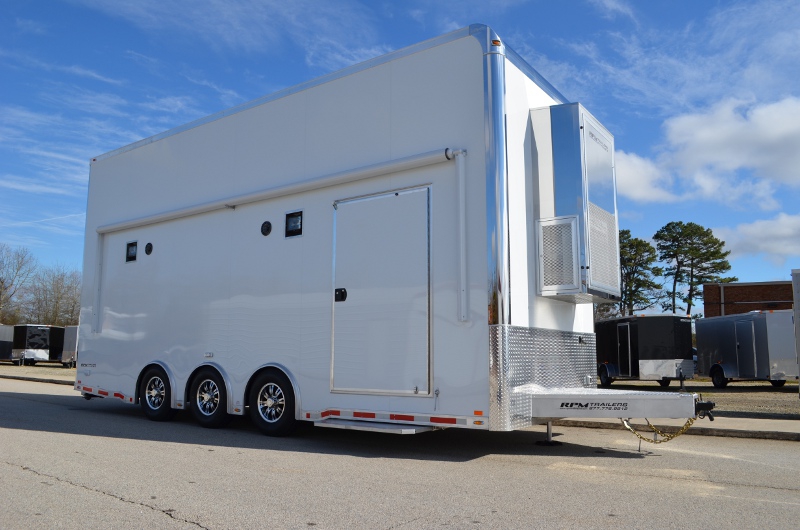

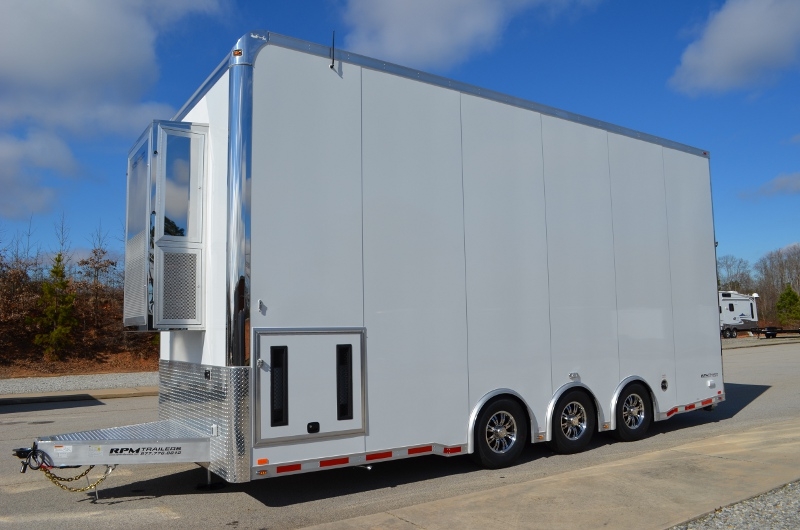

24' Custom inTech Aluminum Stacker Trailer

Product No: 11502
Model No: BSA8524TTA4
Size: 8' 6" x 24' Request More Info

24’ Custom Aluminum inTech Stacker Trailer

RPM Custom Stacker Trailers, RPM is committed to satisfying the unique needs of each of our customers by providing a premium quality custom product at an affordable price. We take pride in the fact that we bring into the world the best custom trailers money can buy. Making sure that each part of the trailer, no matter how insignificant, is of the highest quality possible.  We create a trailer that is more than just the sum of its parts, we create the best custom aluminum trailer for your needs.
Brad Sellers, our custom Stacker specialist designs each of our customers stacker trailer with your needs in mind. Call RPM Truck and Trailer Sales for your next custom stacker trailer 706-654-2882.  RPM Truck and Trailer Sales is determined to design the best aluminum trailers in the industry!  The guaranteed quality, fit and finish of all our trailers is the reason why RPM is the largest aluminum trailer dealer is the country!

GVWR: 19,800 lbs.
Shipping Weight: 8,910 lbs.
Height: 11' 4"
Axle Type: Triple 6,000# Torsion Axles

Model: BSA8524TTA4    Product Number: 11502

Full Perimeter Aluminum Frame
All Tube Construction
Dexter Torsion Axles
Triple Tube A-Frame
Electric Brakes- All Axles
Breakaway Battery Kit
7-Way Trailer Plug
2) 5/16” Ball Coupler
Hydraulic Front Jack
Safety Chains w/ Storage Loop
16” O/C Floor Crossmembers
16” O/C Roof Studs
Smooth Aluminum Wheel Boxes

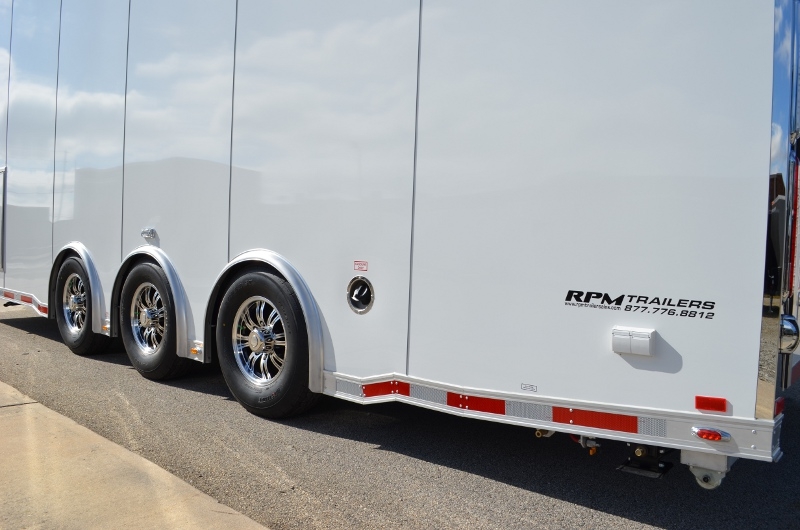

Spread Axles Design w/ individual Fenderettes
ST 235 85 R 16 Nitro Filled Tires w/ Steel Wheels

Extruded Aluminum Floor
Extruded Aluminum Ramp
16” Aluminum Transition Flap
6) Dome Lights
10’ Standard Interior Height
3’ Interior Beavertail
.030 Screwless Aluminum Walls and Ceiling
8) 5,000 lb. D-Rings

.040 Aluminum Skin
One Piece Aluminum Roof
4” Upper and Lower Rub Rail
Dual LED Slimline Tail Lights
36’ ATP Stoneguard
36’ 405 Series Entrance Door
FMVSS Premium Entrance Door Latch
Stainless Steel #8 High Polish Verticals & Radius
Polished Cast Aluminum Corners

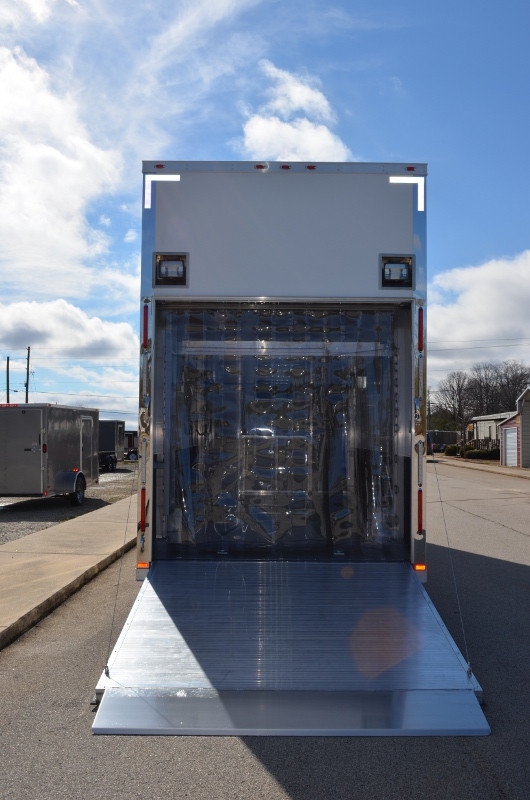

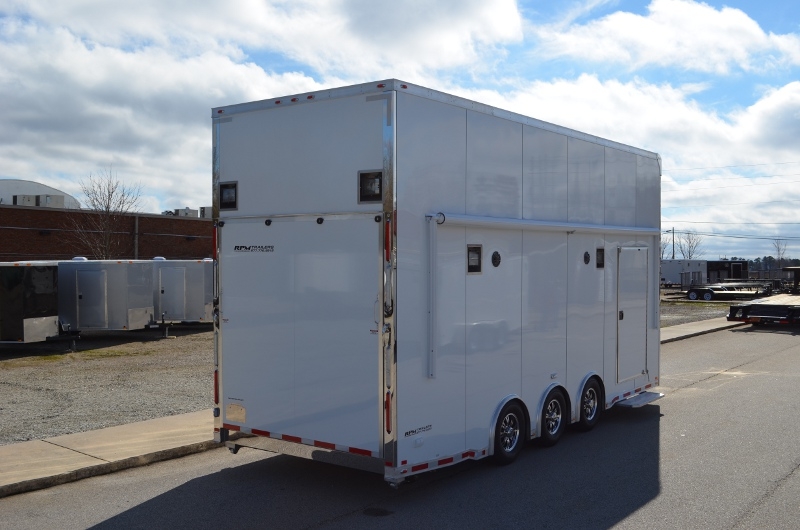

Rear Ramp Door w/ Gapless Continuous Hinge
Stainless Steel Rear Paddle Latches
Rear Skid Plates
Screwless Exterior
Arched & Trussed Walk - On Roof System
LED Premium Clearance Lights
LED Slimline Backup Lights
Stacker Features

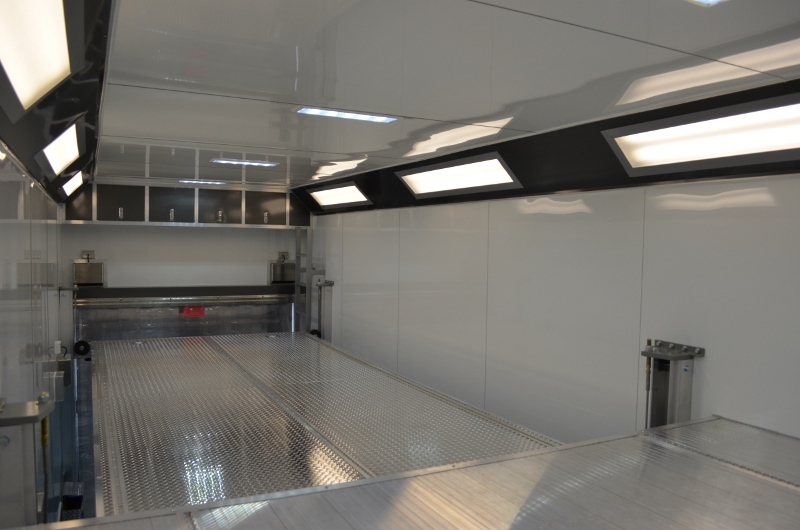

14’ Aluminum Split Rail Lift (4000# Capacity)
In Floor Hydraulic Lift Pump
2) 12V Deep Cycle Batteries w/ Vented Boxes
15A Motorbase Plug
Rear Manual Stabilizer Jacks
Underside of Lift Finished w/ .030 Aluminum
In Floor Battery Compartment
45amp Converter Battery Charger
Tongue Weight Scale

Selected Options:
Upgrade to .050 Exterior Aluminum
R-7 Rated Bubble Foil Insulation
11'4" Interior Height
6) 18" LED Light integrated into bottom of lift
Upgrade Lift to full ATP Aluminum Floor
12" Extended Tongue
Light Duty Attic w/ Matching Floor
Interior Ladder

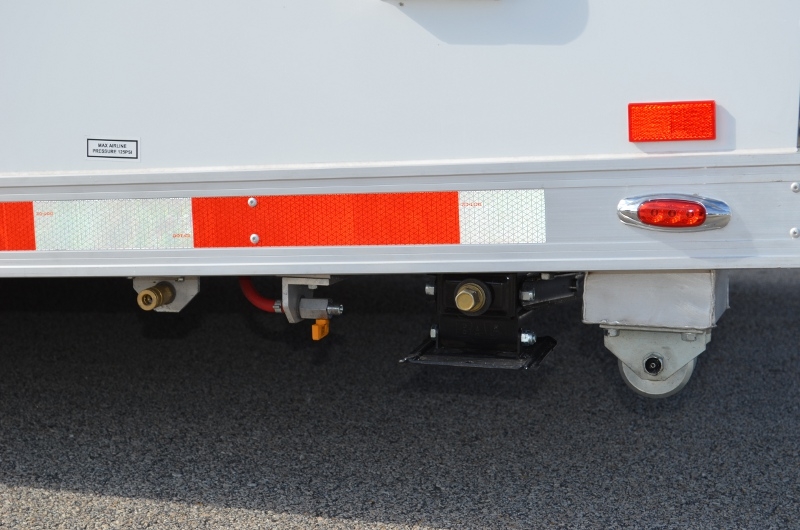

Rear Caster Wheels
Spare Tire on Aluminum Wheel
Upgrade to Aluminum Wheels
In floor Spare Tire Compartment
Upgrade to 48" 405 Series Side Entrance Door
Add Slide Out Aluminum Step

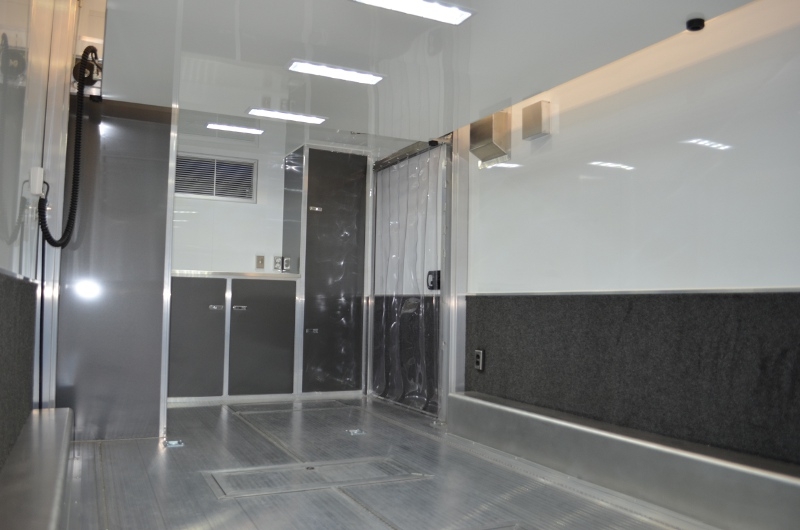

Cold Curtain for Entrance Door
Cold Curtain for Rear Ramp Door

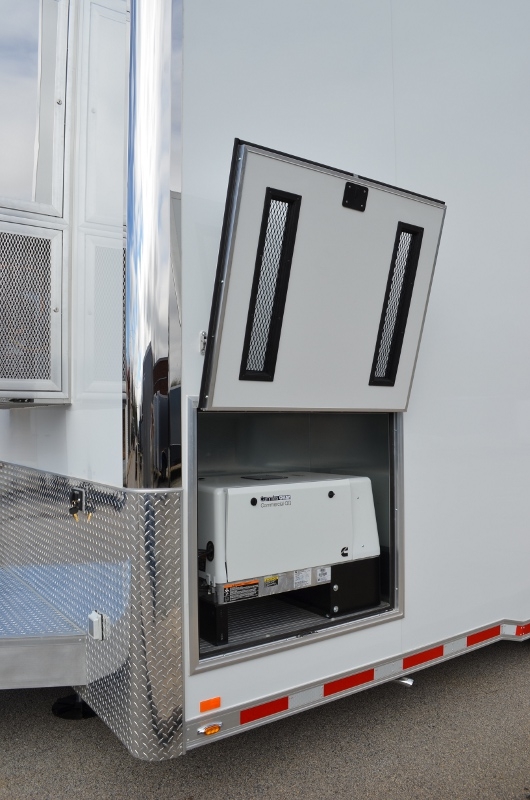

7.0KW Onan Generator Package
Jumper Blocks for 12v System for use when battery is dead
50 amp Electrical Service
7) 120V 15A Recepts
2) 120V 20A Recepts
Upgrade to 50 amp Panel to 240V Output Capable
6) Upgrade to Standard Dome Lights to 12V 18" LED
6) 48" Fluorescent Lights Mounted at 45 degrees Angle
Upgrade to 3 Way Light Switches
LED Slimline Back up Lights
Side Mount LED Turn Signal / Clearance and Turn Combo
4) 120V 500 W Quartz Halogen Lights
34" High Carpet on Interior Walls

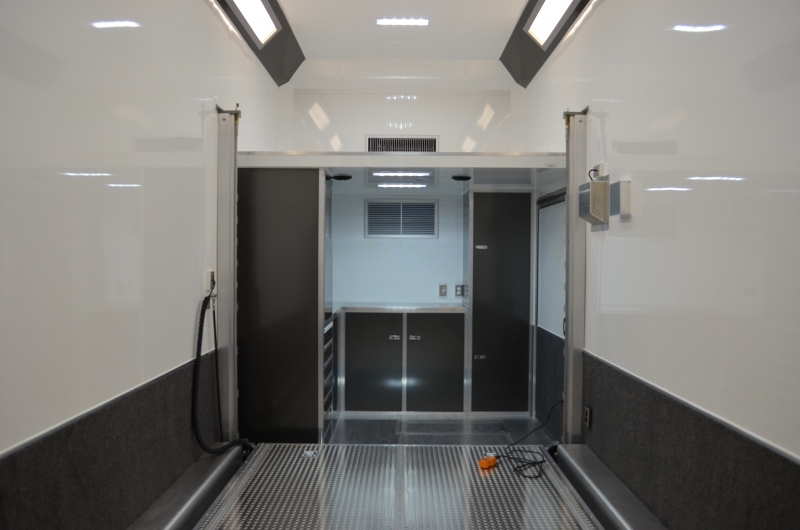

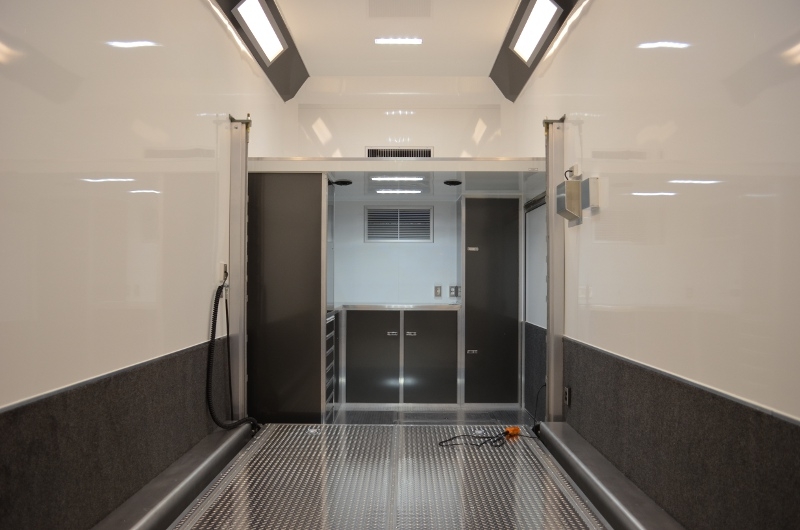

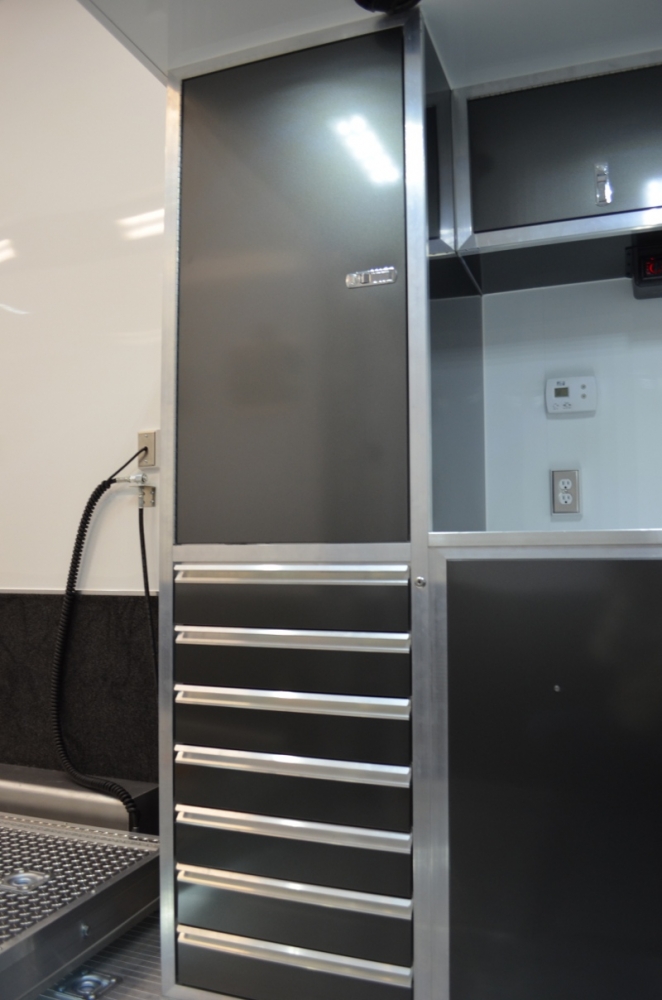

8' Premium Lower Cabinets

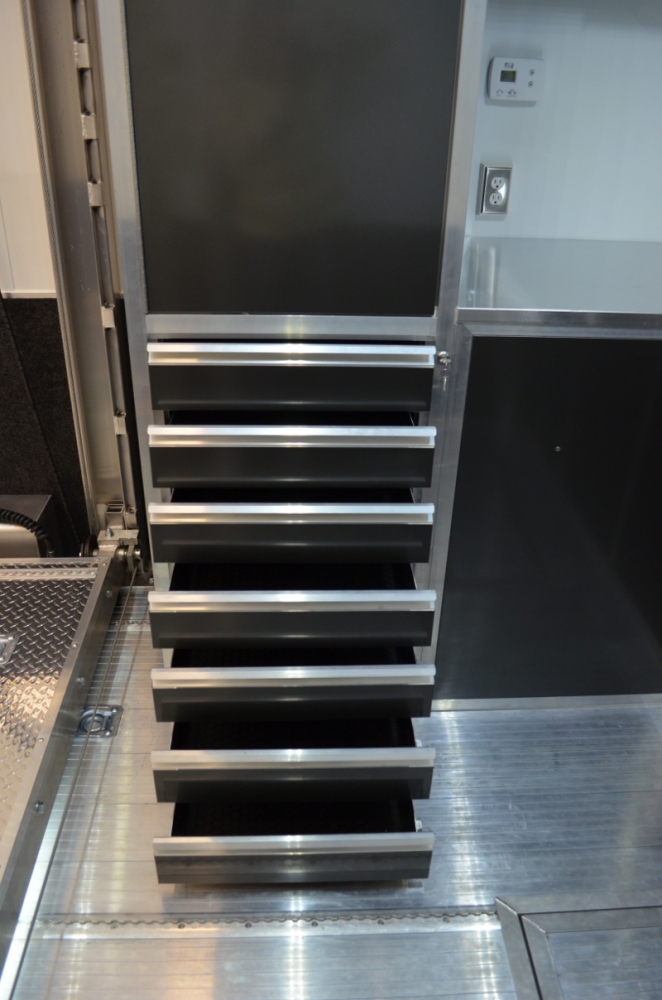

24" Tool Chest Bank to Lower Cabinet
Add Aluminum Dresser Closet to base cabinet
add standalone dresser closet
4' Premium Upper Aluminum Cabinets
8' Upper Aluminum Cabinets
Airline Track Recessed in floor & on Lift

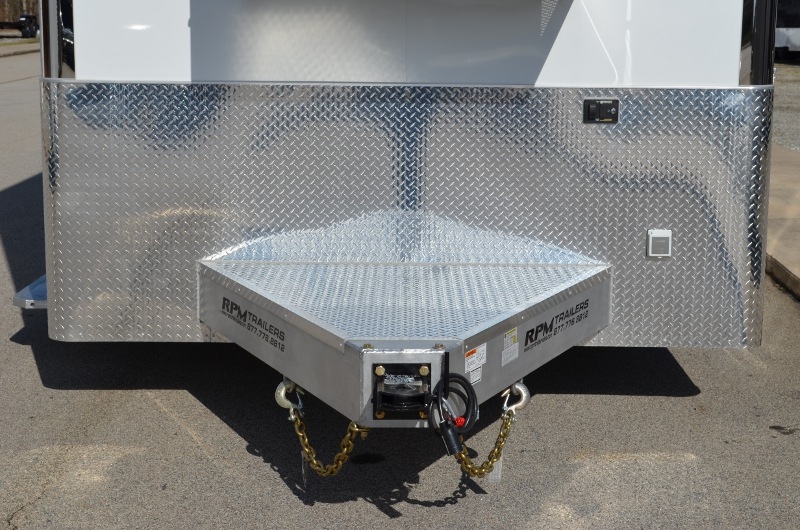

ATP Tongue Cover
Upgrade to lowered Skirt w/ Reverse Beavertail Design
Upgrade to Mirror Finished Stainless Steel Rear Vertical Post
12v Dometic 21' Awning w/ Weathershield
2.5 Ton Bard A/C  w/ 5,000 BTU Heat w/ Stainless Cover
Airline Prep Package - 1 Inlet - 3 Outlets - Dedicated 20A Recept
AM/FM/CD Stereo w/ Four Interior Speakers
Upgraded to 2 Interior Speakers & 2 Exterior Speakers
