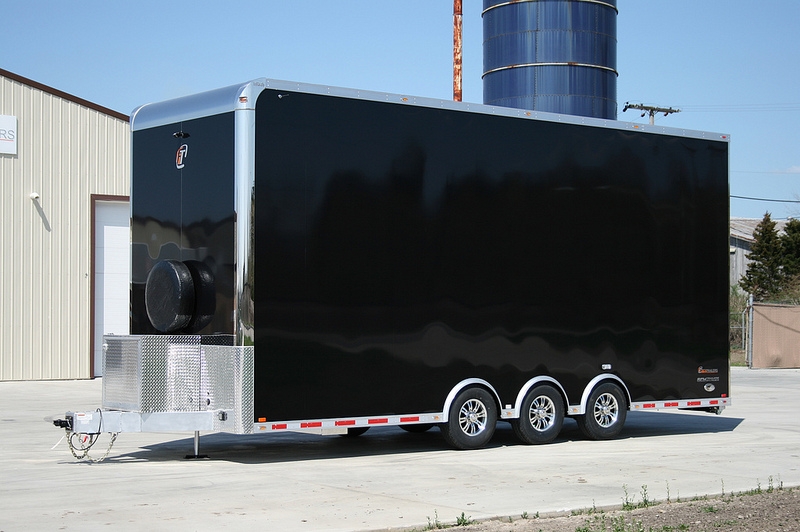

26' inTech Aluminum Stacker Race Trailer

Product No: 11625
Model No: BSA8526TTA5
Size: 8' 6" x 26' Request More Info

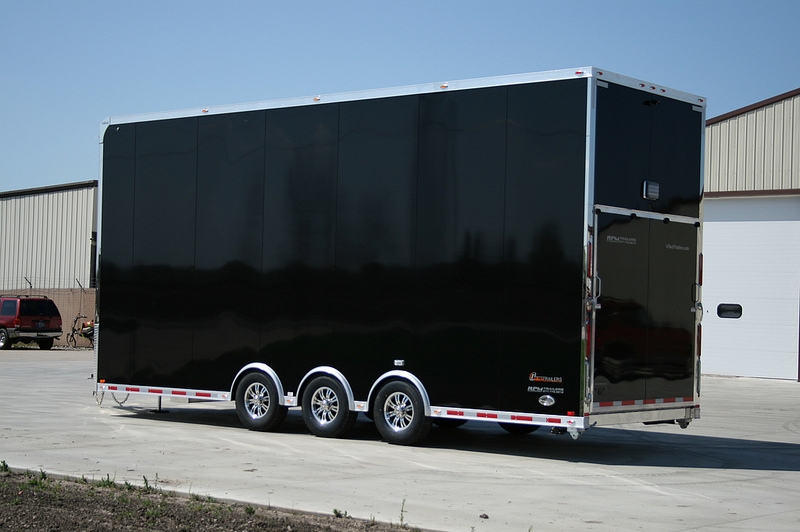

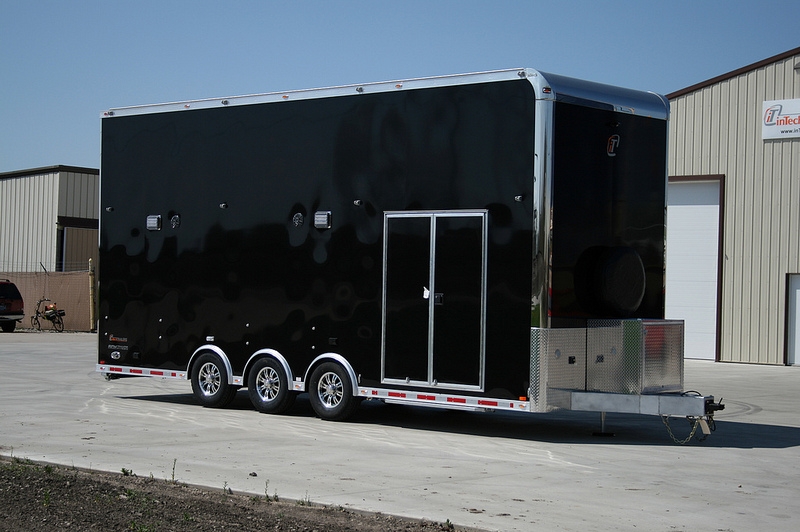

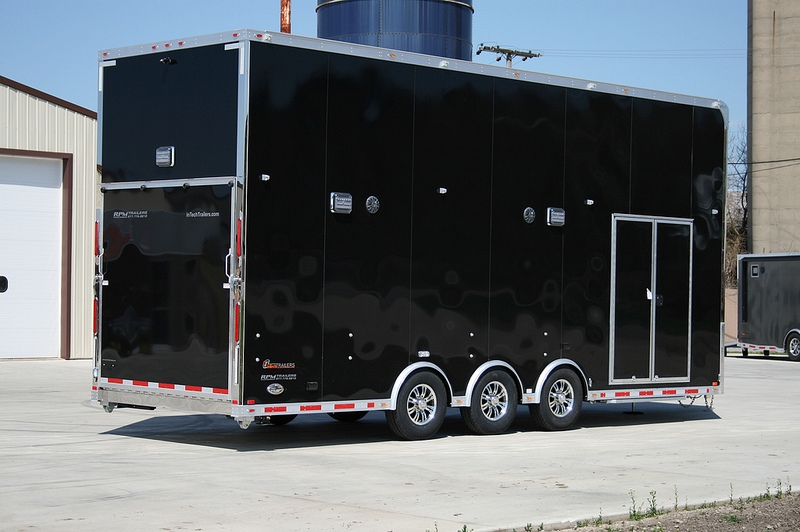

26' Custom inTech Aluminum Stacker Trailer

Another incredible stacker trailer designed by RPM Truck and Trailer Sales. Handcrafted by inTech Trailers all-Amish workforce, no other aluminum trailer is comparable. Take a look at all the incredible features this 8.5 x 26 custom inTech Aluminum Stacker Trailer has to offer.  Because stacker trailers are our specialty, the skies are the limits.  Our all aluminum stacker trailers are custom built for each customer’s specific needs in mind. This 26’ stacker race trailer boast custom quality aluminum cabinets and so much more.
RPM Truck and Trailer Sales is determined to design the best aluminum trailers in the industry! The guaranteed quality, fit and finish of all our trailers is the reason why RPM is the largest aluminum trailer dealer is the country!

GVWR: 23,100 lbs.
Shipping Weight: 7,890 lbs.
Height: 11’4” Interior
Axle Type: Triple 7,000# Torsion Axles
Model: BSA8526TTA5               Product Number: 11625

Full Perimeter Aluminum Frame
All Tube Construction
Triple Tube A-Frame
Dexter Torsion Axles
Electric Brakes- All Axles
Breakaway Battery Kit
7-Way Trailer Plug
2) 5/16” Ball Coupler
Hydraulic Front Jack
Safety Chains w/ Storage Loop
16” O/C Floor Crossmembers
16” O/C Wall Studs16” O/C Roof Studs
Smooth Aluminum Wheel Boxes
Spread Axles Design w/ individual Fenderettes
ST 235 85 R 16 Nitro Filled Tires w/ Steel Wheels

One Piece Aluminum Subfloor Vapor Barrier
3/4” Plywood Subfloor
Extruded Aluminum Floor
Extruded Aluminum Ramp
.030 Screwless Aluminum Walls and Ceilings
6) Dome Lights
10’ Standard Interior Height
8) 5000# Recessed D-Rings
3’ Interior Beavertail

.040 Aluminum Skin
Screwless Aluminum Exterior
One Piece Aluminum Roof
Arched Walk on Trussed Roof System
4” Upper and Lower Rub Rail
LED Premium Clearance Lights
Dual LED Slimline Tail Lights
LED Slimline Backup Lights
36’ ATP Stoneguard
36’ 405 Series Entrance Door
FMVSS Premium Entrance Door Latch
Stainless Steel #8 High Polish Verticals & Radius
Polished Cast Aluminum Corners
Rear Ramp Door w/ Gapless Continuous Hinge
Stainless Steel Rear Paddle Latches
Rear Skid Plates

Stacker Features:

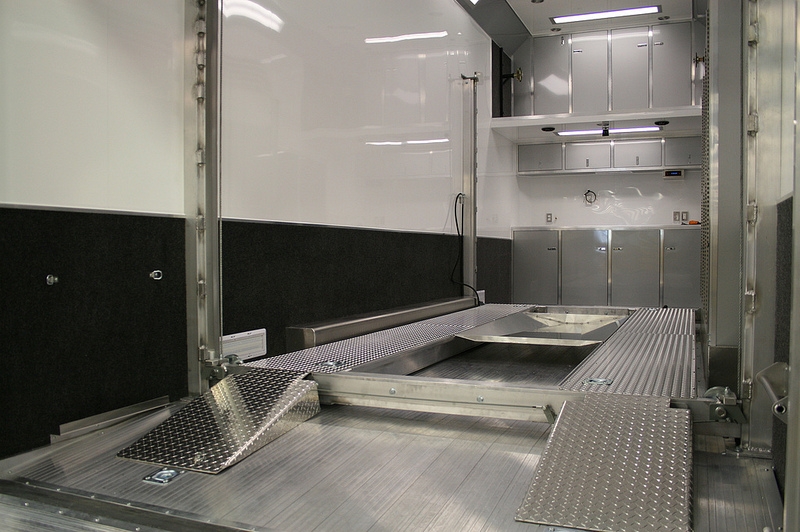

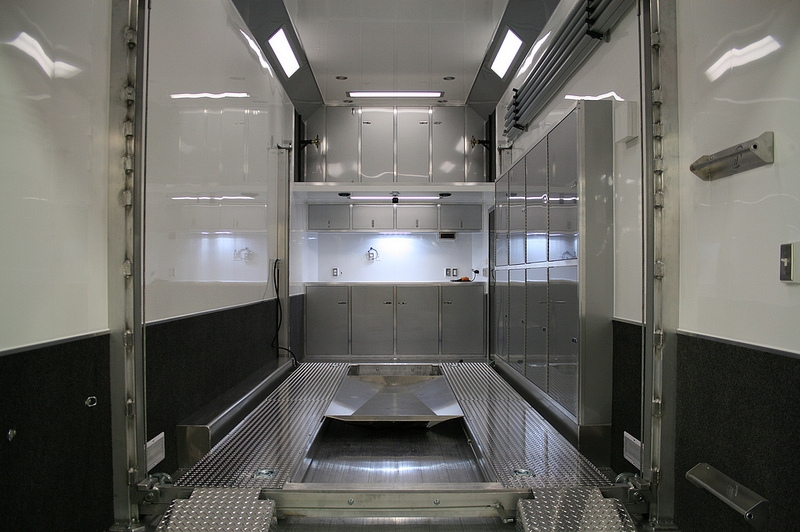

14’ Aluminum Split Rail Lift (4000# Capacity)
In Floor Hydraulic Lift Pump
2) 12V Deep Cycle Batteries w/ Vented Boxes
In Floor Battery Compartment
15A Motorbase Plug
45 Amp Converter Battery Charger
Rear Manual Stabilizer Jacks
Tongue Weight Scale
Underside of Lift Finished w/ .030 Aluminum

Additional Selected Options:
Upgrade to 11’4” Interior Height
Upgrade to .050 Exterior Aluminum

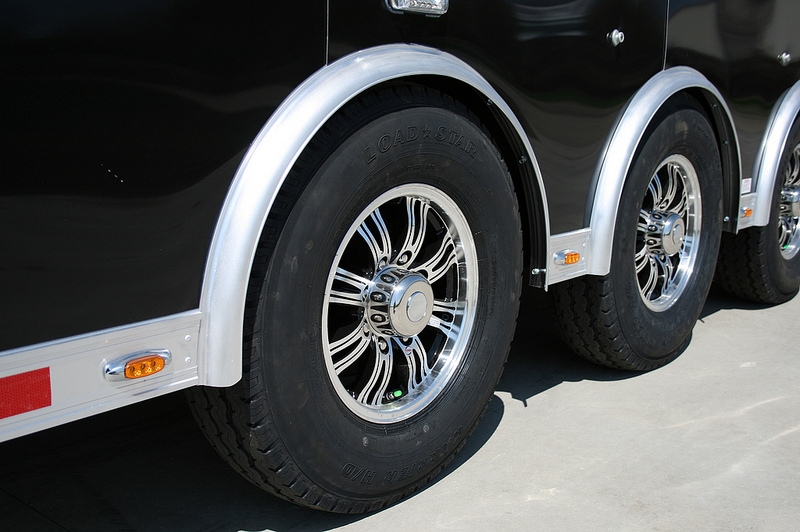

Upgrade to Aluminum Wheels
Spare ST 235 85R 16 on matching Aluminum Wheel
Spare Tire Wall Mount

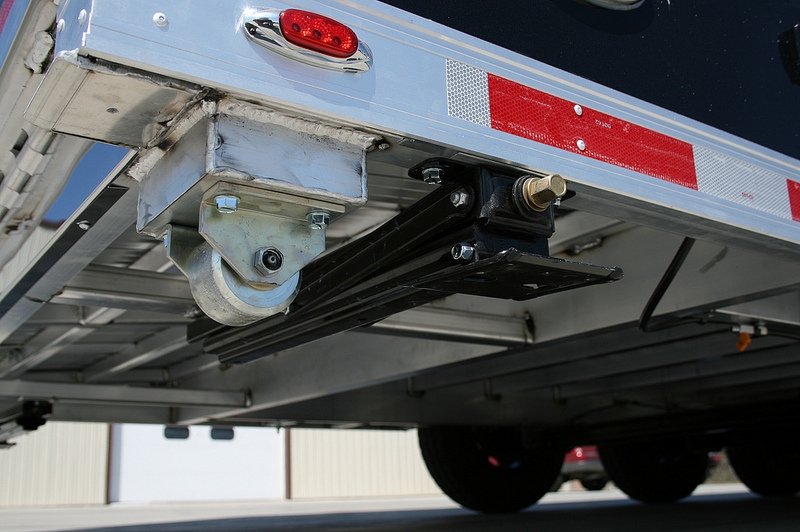

Rear Caster Wheels
Weight Distribution Prep
12” Extended Tongue

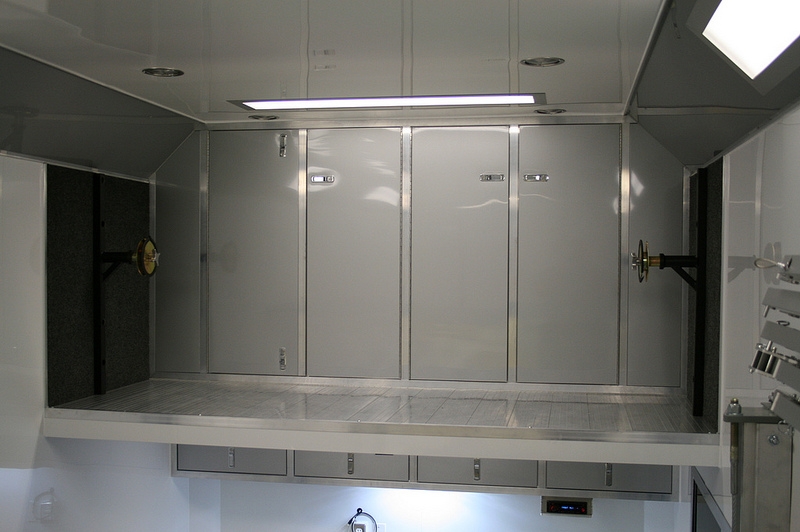

5’ Light Duty Attic w/ Matching Floor

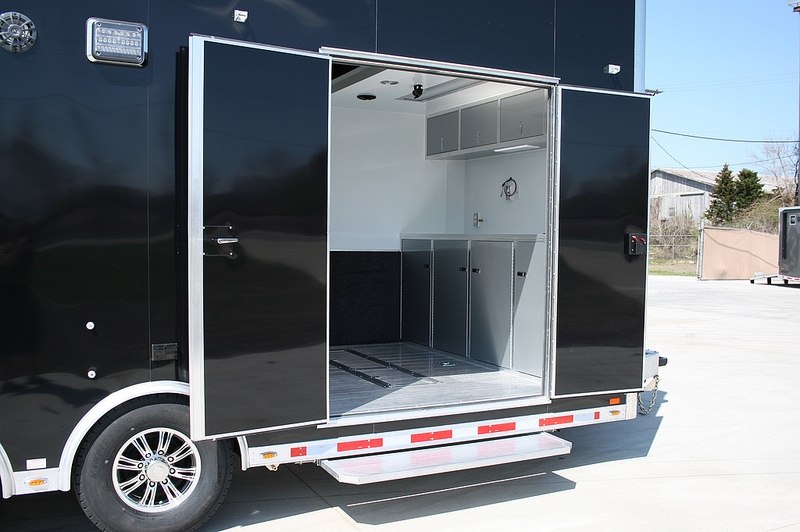

Upgrade to 60” Side Door
Slide Out Aluminum Step
50amp Generator Prep w/ Transfer Switch
5) 120v 15amp Recepts
1) Additional 12v Dome Light
3) 12v 18” LED Interior Lights
7) 120v 48” Fluorescent Lights
4) Lights Upgraded to 45 Degrees Mounted in Cove
1) Upgrade to 3 way light switches (pair)
10) LED Clearance Lights
1) Pair Side Mount LED Turn Signal/Clearance and Turn Combo
12V LED Docking Lights (pair)
3)120v  500w Quartz Halogen Light Upgraded to Flush Mounted LED
34” High Carpet on Interior Walls

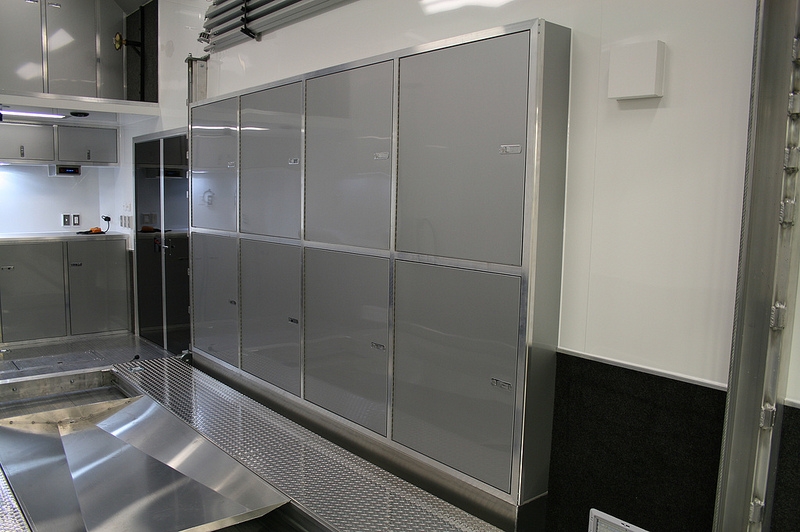

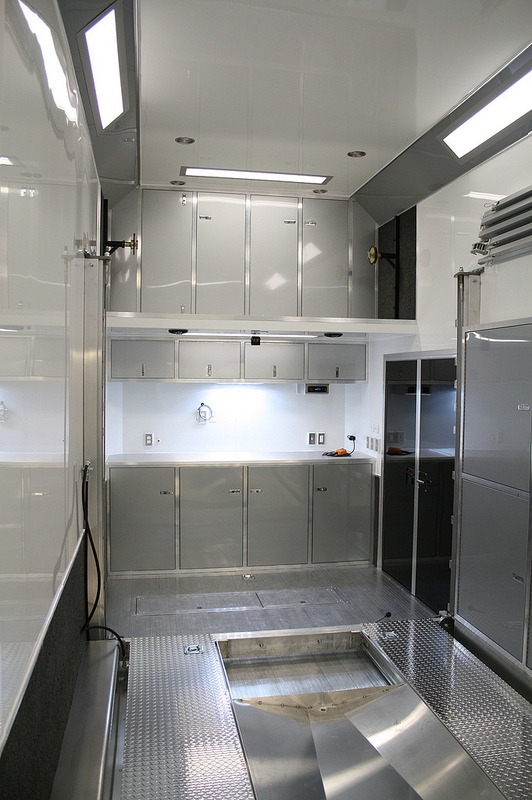

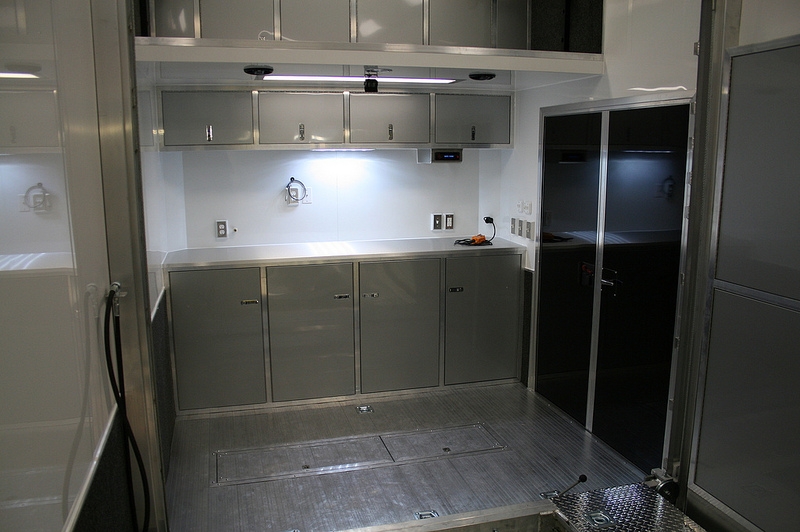

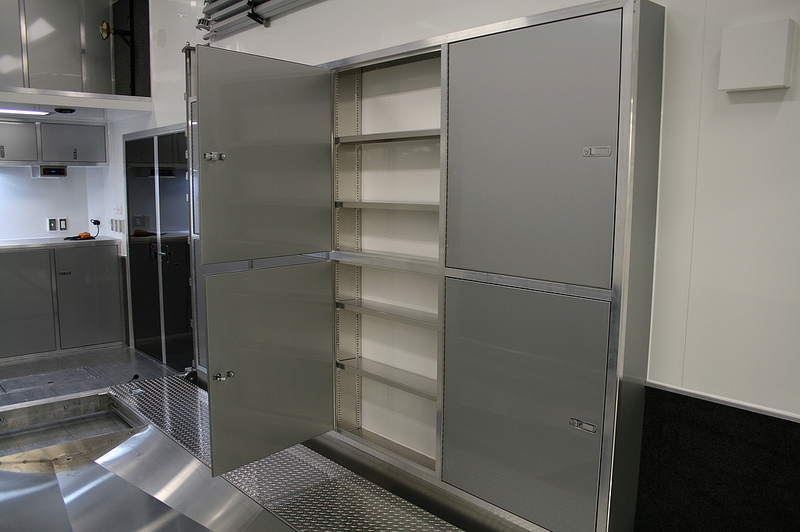

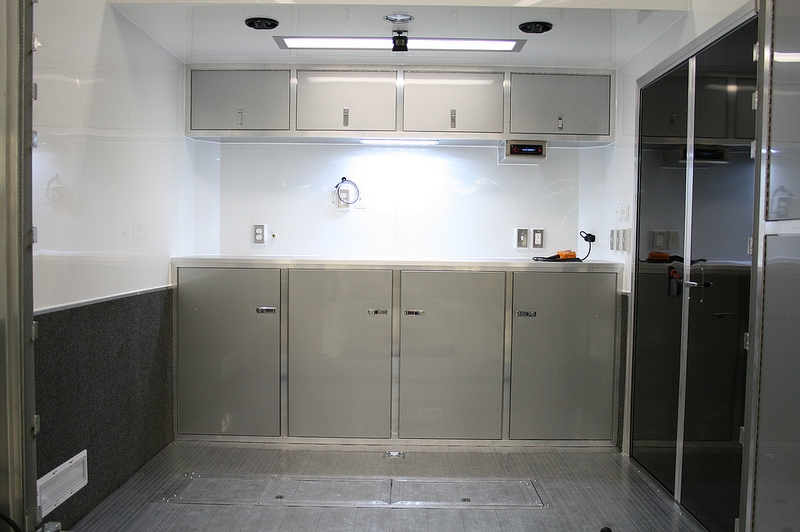

2) 8’ Premium Lower Aluminum Cabinets
8’ Premium Upper Aluminum Cabinet
Triple Axle Wheel Well Cabinet
2) 5,000 lb. D-Rings Recessed
TV Prep Package

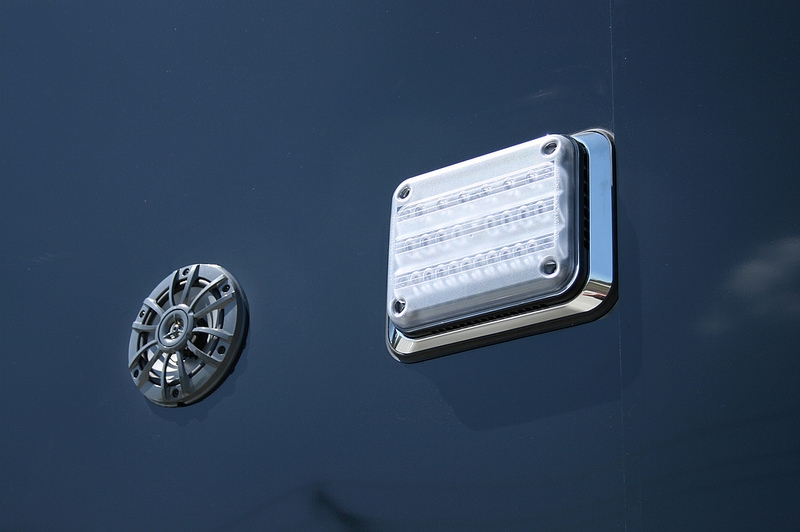

AM/FM/CD Stereo w/ 2 Interior Speakers & 2 Exterior Speakers

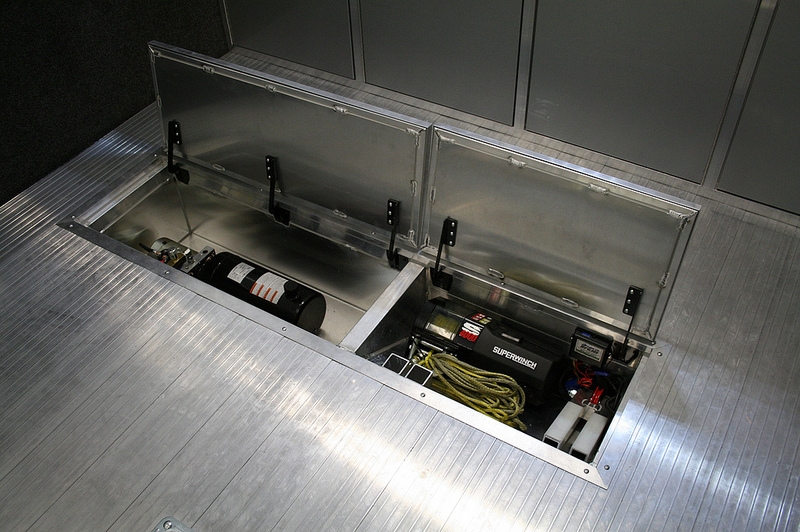

In Floor Winch Box
Airline Prep Package
50 amp Electrical Package
Arrow / Girard Awning Prep

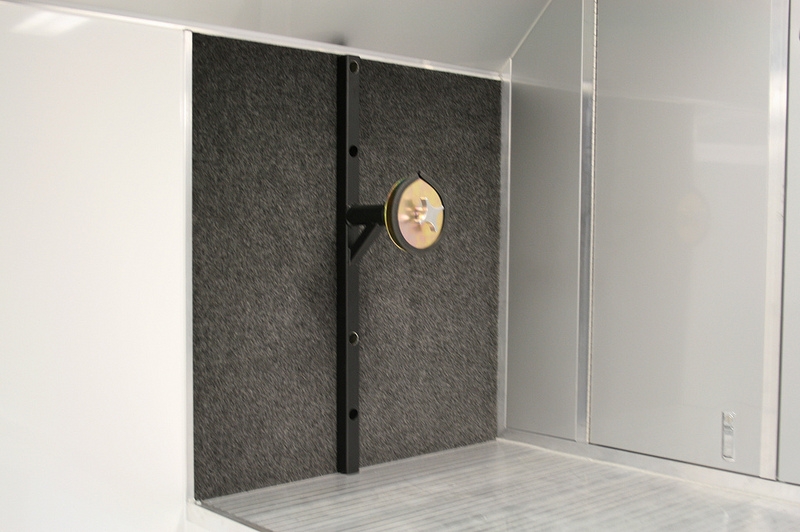

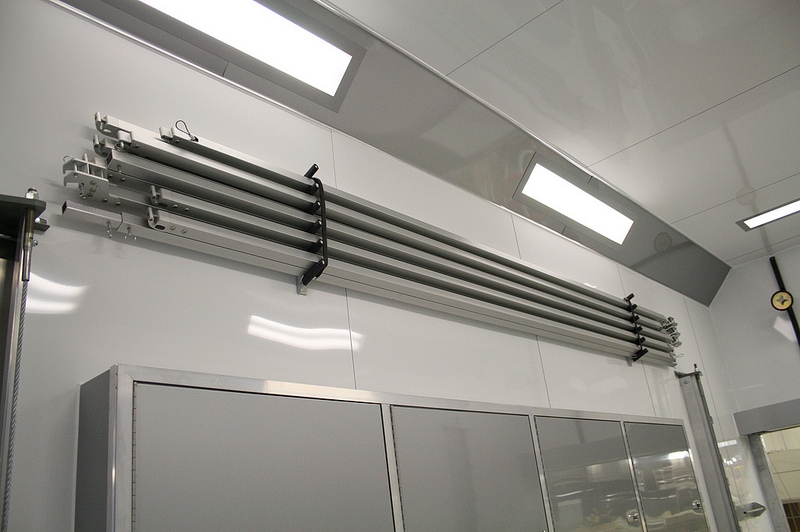

4)Spin on Dragster Slick Mounts – Carpeted Backing
2) Strap Hangers – Carpeted Backing

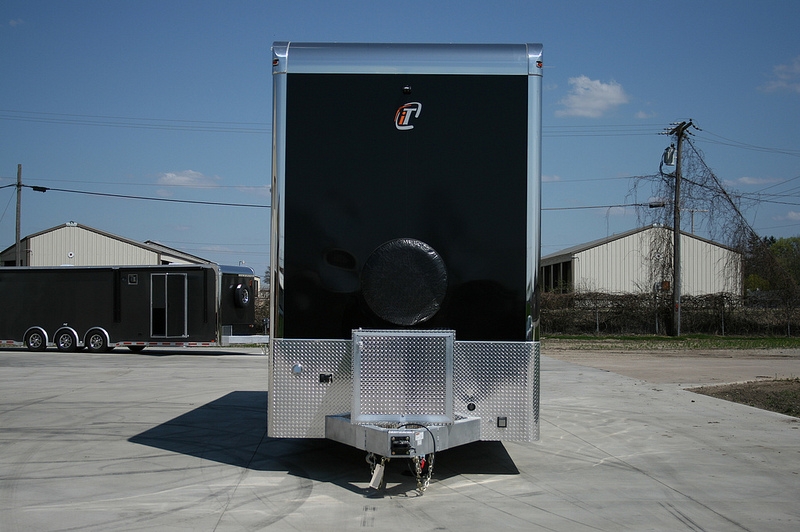

Tongue Mounted Generator Box
Custom Drain Pan
Customer Supplied Winch
Customer Supplied Weather Station
Customer Supplied 3 Position Camera
