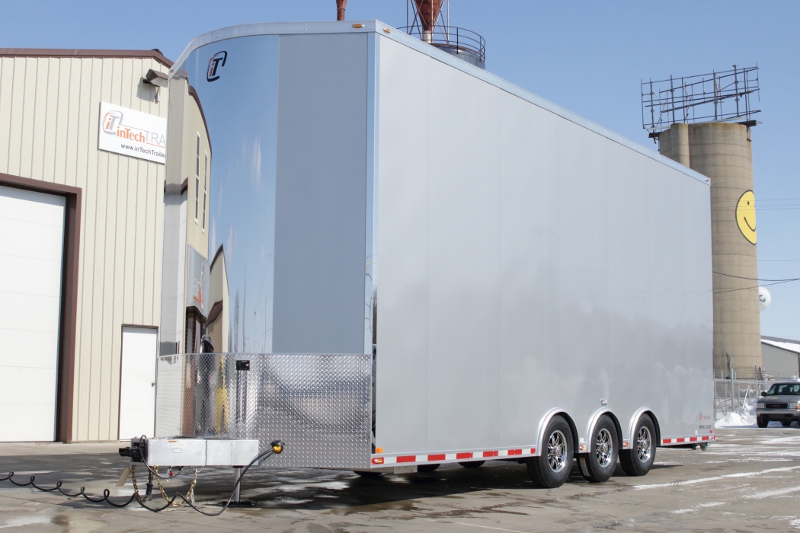

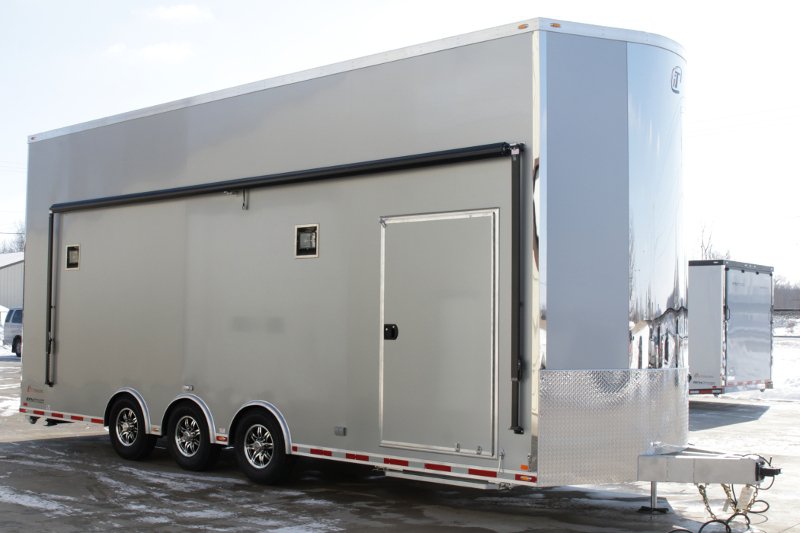

26’ + 2’ Wedge Nose All Aluminum Stacker Trailer
RPM is committed to providing Custom Aluminum Stacker Trailers designed to meet the needs of each individual’s specific needs. The extensive offering of an excellent custom product at an affordable price has always been our number one goal. The structure of every trailer is unique and of the highest value that money can buy. Everyone’s taste is different and expected to be diverse, therefore each part of the trailer, no matter how inconsequential, every detail comes with the highest quality possible.
Brad Sellers, owner of RPM and our custom trailer specialist designs each of our custom stacker trailers with your needs in mind. Take a look at this beautiful 28’ Stacker Trailer and its many custom options. This is personalization at its finest. Contact RPM Truck & Trailer Sales for your next custom stacker trailer 706-654-2882. RPM Truck & Trailer Sales is designing only the finest aluminum trailers in the industry! The guaranteed quality, fit and finish of all our trailers is the reason why RPM is the largest aluminum trailer dealer in the country! “Often Imitated – Never Duplicated”
Brad Sellers, owner of RPM and our custom trailer specialist designs each of our custom stacker trailers with your needs in mind. Take a look at this beautiful 28’ Stacker Trailer and its many custom options. This is personalization at its finest. Contact RPM Truck & Trailer Sales for your next custom stacker trailer 706-654-2882. RPM Truck & Trailer Sales is designing only the finest aluminum trailers in the industry! The guaranteed quality, fit and finish of all our trailers is the reason why RPM is the largest aluminum trailer dealer in the country! “Often Imitated – Never Duplicated”

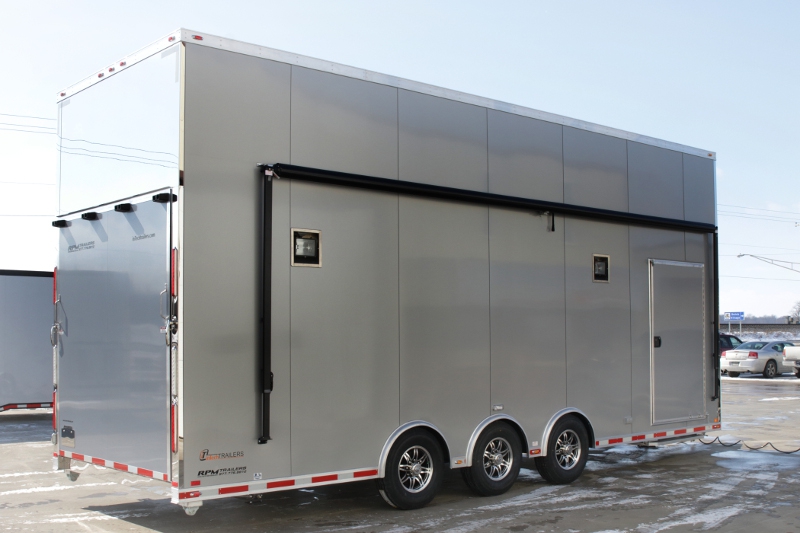

28’ inTech aluminum Stacker Trailer Specifications
GVWR: 18,000 lbs.
Shipping Weight: 7,260 lbs.
Width: 8.5
Length: 26’ + 2’ Wedge
Height: 11' 4” Interior Height
Axles: 3) Dexter 6,000 lbs. Torsion Axles
Shipping Weight: 7,260 lbs.
Width: 8.5
Length: 26’ + 2’ Wedge
Height: 11' 4” Interior Height
Axles: 3) Dexter 6,000 lbs. Torsion Axles
Model: BSA8526TTA4 Product Number: 11751
Chassis
Full Perimeter Aluminum Frame
All Tube Construction
Triple Tube A-Frame
Dexter Torsion Axles
Electric Brakes - All Axles
Breakaway Battery Kit
7-Way Trailer Plug
2 5/16" Ball Coupler
Safety Chains w/ Storage Loop
Hydraulic Front Jack
16" O/C Floor Crossmembers
16" O/C Wall Studs
16" O/C Roof Studs
Smooth Aluminum Wheel Boxes
Spread Axle Design w/ Individual Fenderettes
ST235/80R16 Nitro Filled Tires w/ Steel Wheels
Full Perimeter Aluminum Frame
All Tube Construction
Triple Tube A-Frame
Dexter Torsion Axles
Electric Brakes - All Axles
Breakaway Battery Kit
7-Way Trailer Plug
2 5/16" Ball Coupler
Safety Chains w/ Storage Loop
Hydraulic Front Jack
16" O/C Floor Crossmembers
16" O/C Wall Studs
16" O/C Roof Studs
Smooth Aluminum Wheel Boxes
Spread Axle Design w/ Individual Fenderettes
ST235/80R16 Nitro Filled Tires w/ Steel Wheels
Interior
Extruded Aluminum Floor
Extruded Aluminum Ramp
16" Aluminum Transition Flap
6) Dome Lights
.030 Screwless Aluminum Walls and Ceiling
10' Standard Interior Height
8) 5000# Recessed D-Rings
3' Interior Beavertail
Extruded Aluminum Floor
Extruded Aluminum Ramp
16" Aluminum Transition Flap
6) Dome Lights
.030 Screwless Aluminum Walls and Ceiling
10' Standard Interior Height
8) 5000# Recessed D-Rings
3' Interior Beavertail
Exterior
.040 Aluminum Skin
Screwless/Rivetless Aluminum Exterior
One Piece Aluminum Roof
Arched & Trussed Walk-On Service Roof
4" Upper and Lower Rub Rail
LED Premium Clearance Lights
Dual LED Slimline Tail Lights
LED Slimline Backup Lights
36" ATP Stoneguard
36" 405 Series Entrance Door
FMVSS Premium Entrance Door Latch
Stainless Steel #8 High Polish Front Verticals & Radius
Polished Cast Aluminum Corners

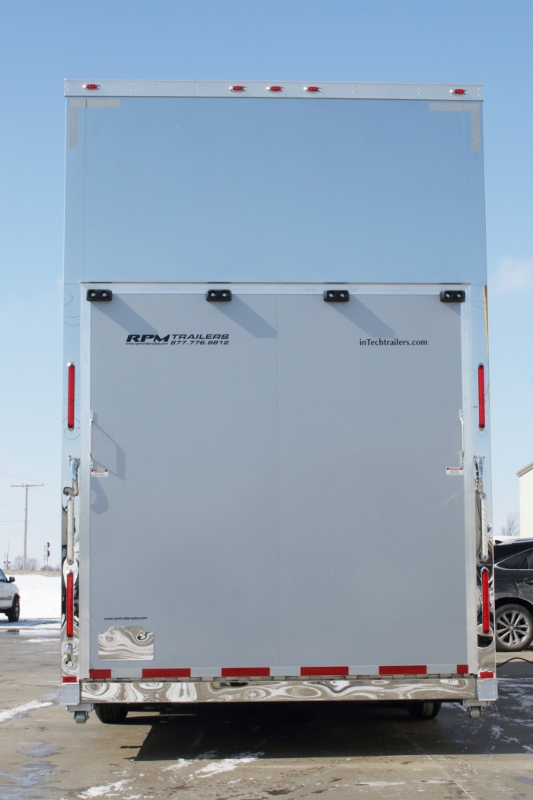

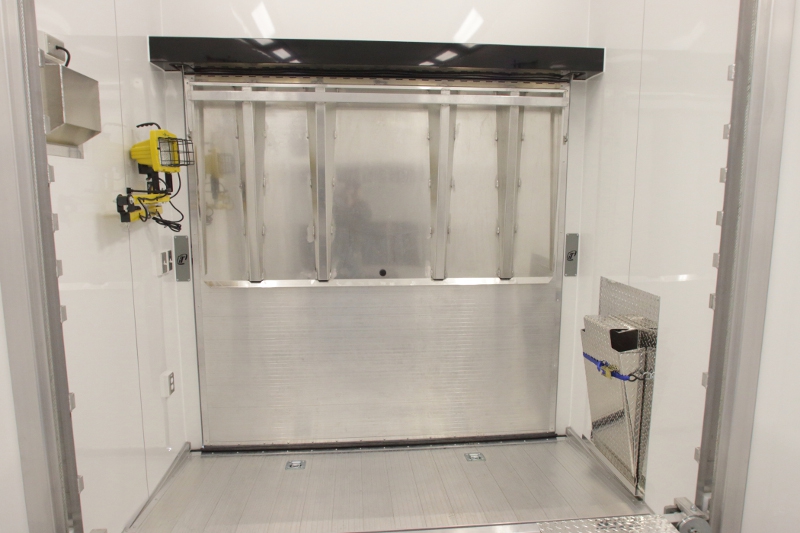

Rear Ramp Door w/ Gapless Continuous Hinge
Stainless Steel Rear Paddle Latches
Rear Skid Plates
.040 Aluminum Skin
Screwless/Rivetless Aluminum Exterior
One Piece Aluminum Roof
Arched & Trussed Walk-On Service Roof
4" Upper and Lower Rub Rail
LED Premium Clearance Lights
Dual LED Slimline Tail Lights
LED Slimline Backup Lights
36" ATP Stoneguard
36" 405 Series Entrance Door
FMVSS Premium Entrance Door Latch
Stainless Steel #8 High Polish Front Verticals & Radius
Polished Cast Aluminum Corners
Rear Ramp Door w/ Gapless Continuous Hinge
Stainless Steel Rear Paddle Latches
Rear Skid Plates
Stacker Features

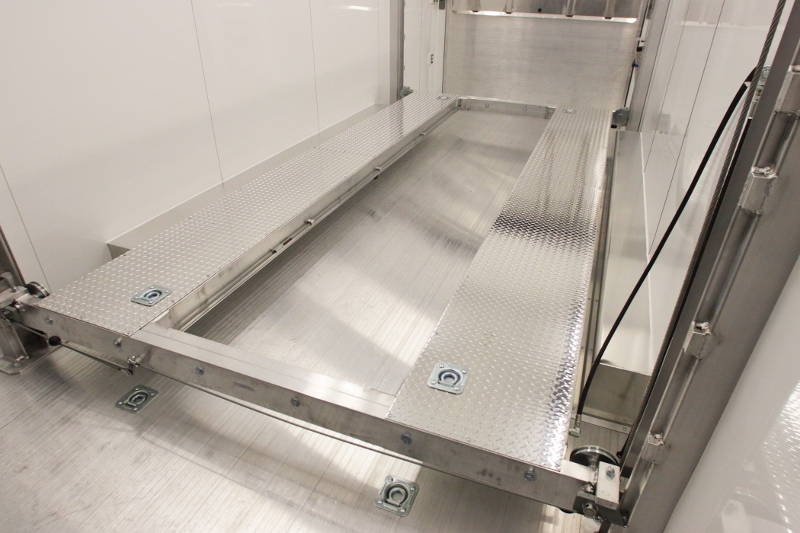

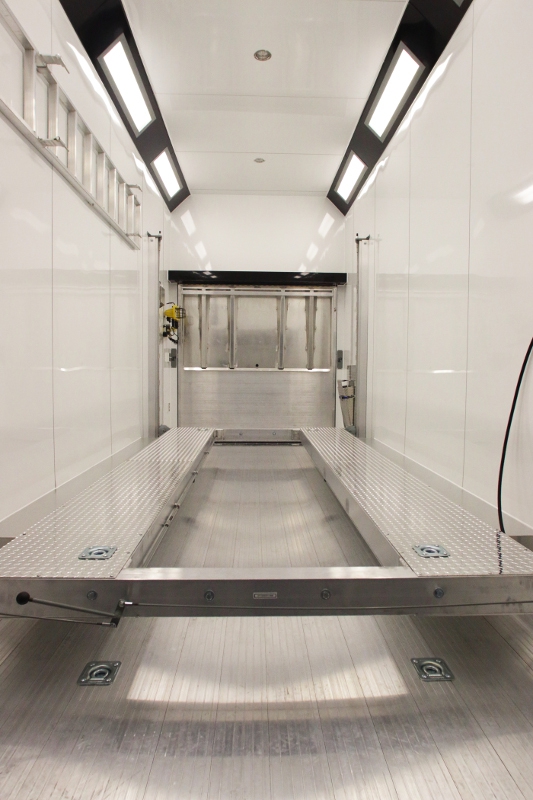

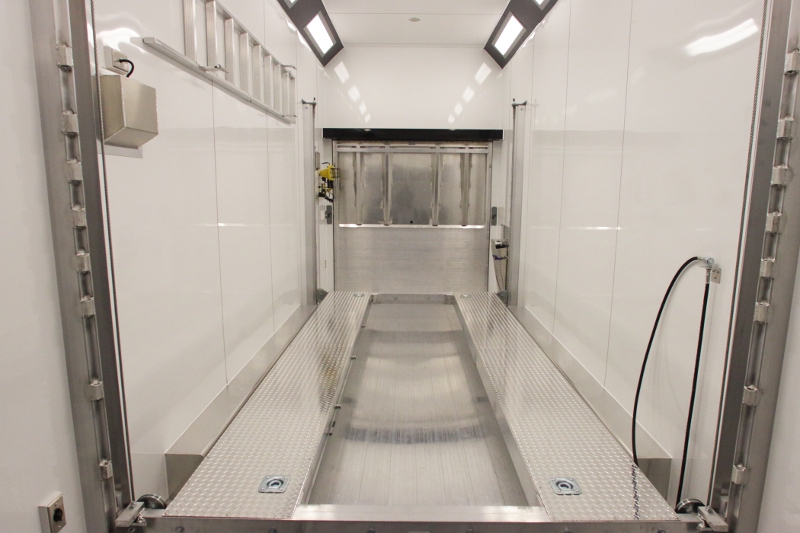

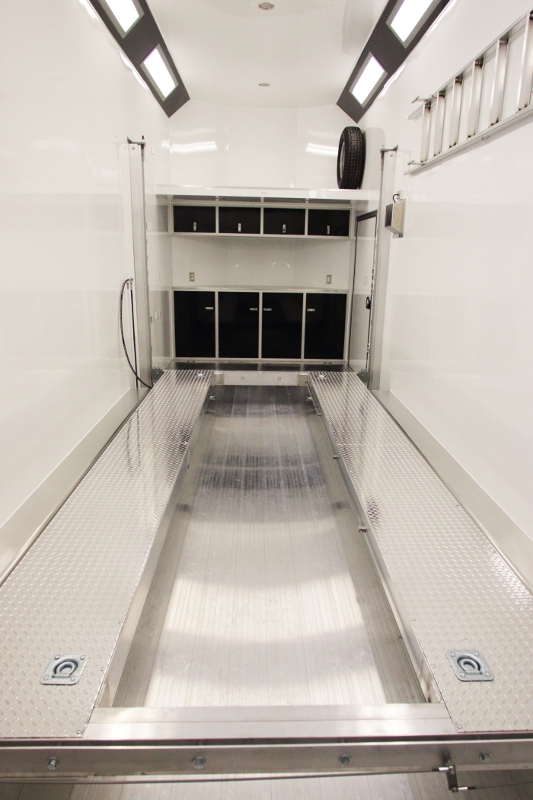

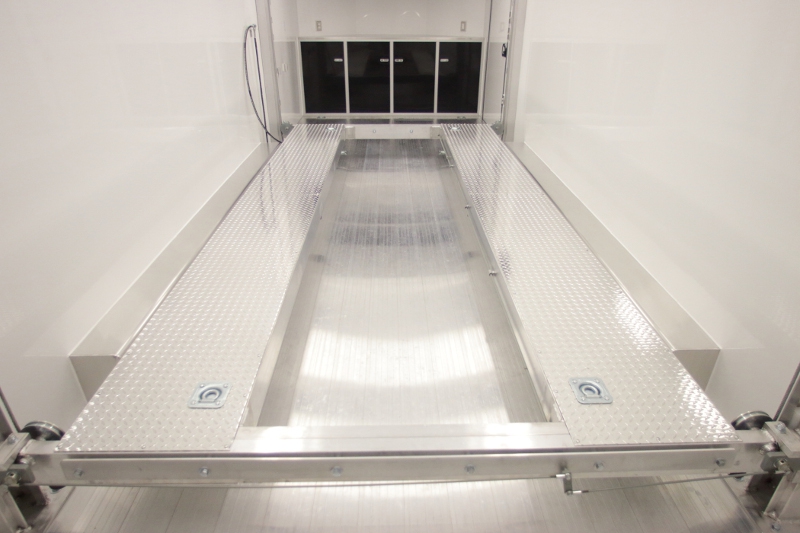

14' Aluminum Split Rail Lift 4,000 lb. Capacity
In Floor Hydraulic Lift Pump
2) 12V Deep Cycle Batteries w/Vented Boxes
In Floor Battery Compartment
15A Motorbase Plug
45 Amp Converter Battery Charger
Rear Manual Stabilizer Jacks
Tongue Weight Scale
Underside of Lift Finished w/ .030 Aluminum
14' Aluminum Split Rail Lift 4,000 lb. Capacity
In Floor Hydraulic Lift Pump
2) 12V Deep Cycle Batteries w/Vented Boxes
In Floor Battery Compartment
15A Motorbase Plug
45 Amp Converter Battery Charger
Rear Manual Stabilizer Jacks
Tongue Weight Scale
Underside of Lift Finished w/ .030 Aluminum
Additional Selected Options:
Upgrade to .050 Exterior Aluminum
Stainless Steel Rear Header
Upgrade to 11'4" Interior
Upgrade to 2' Wedge

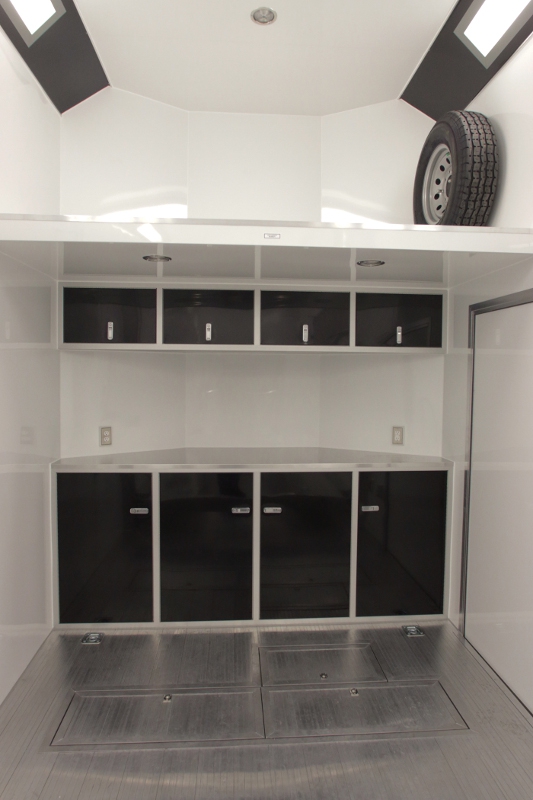

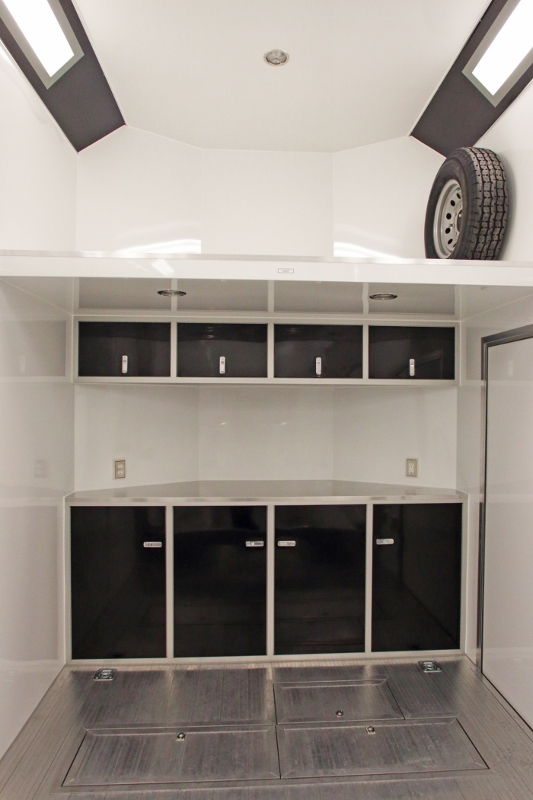

Wedge Nose Upper Aluminum Cabinet Straight Across - Up to Full Depth

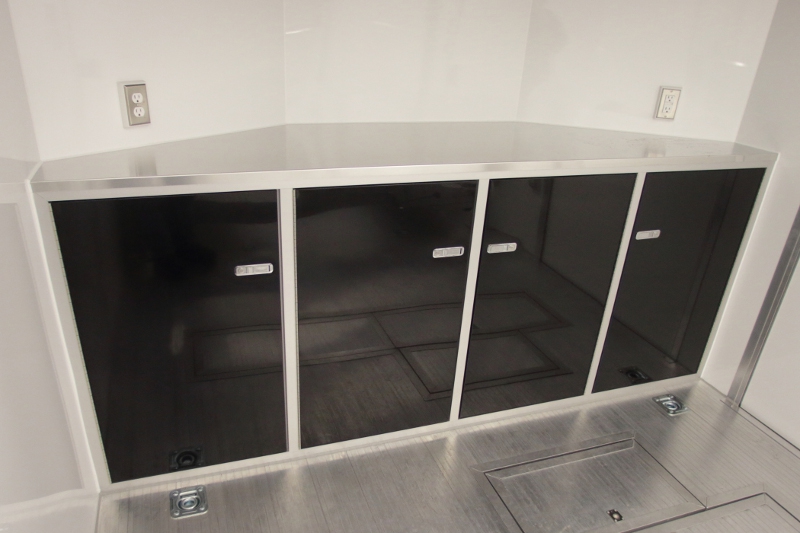

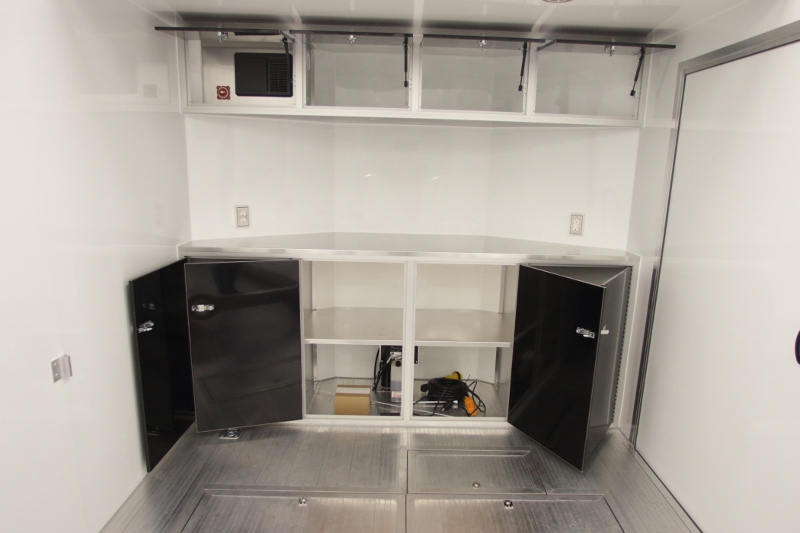

Wedge Nose Lower Aluminum Cabinet Straight Across - Up to Full Depth

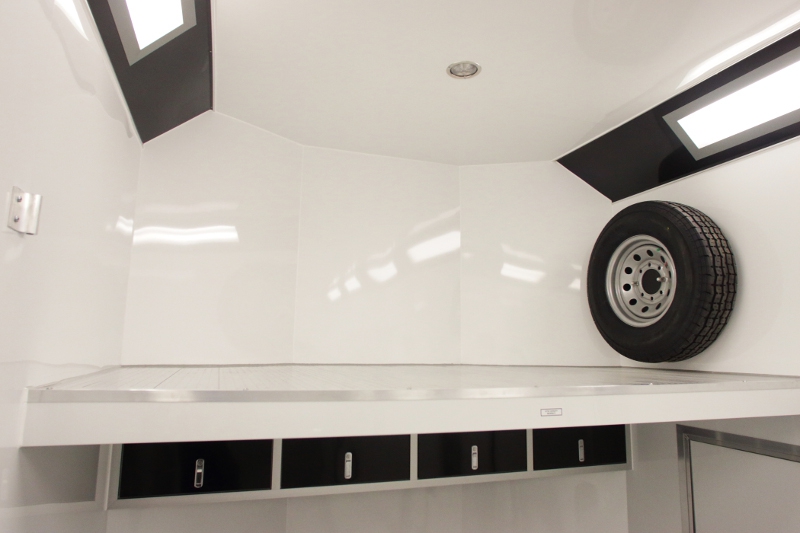

5’ Light Duty Attic w/ Matching Floor

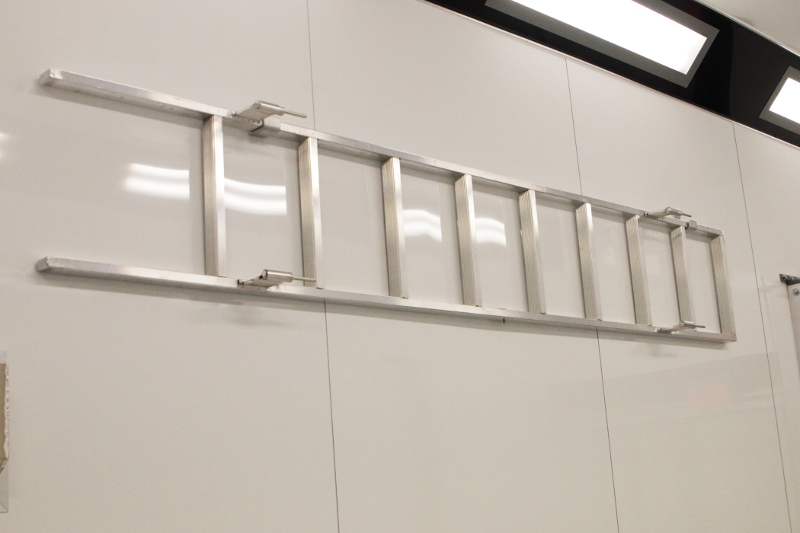

Removable Interior Ladder w/ Interior Hangers - Access to Attic
Rear Caster Wheels
Weight Distribution Prep - Blocks for Wedge
Spare ST235/80R16 on Steel Wheel
6) Upgrade to Aluminum 16" Wheel From 16" Steel Wheel
Spare Tire Wall Mount
Upgrade to 48" 405 Series Entrance Door
Add Slideout Aluminum Step
Upgrade to Full Width Ramp Extension Up to 48" Long w/ 3" Bumpers
30 Amp Electrical Service Package
Motorbase Plug
25' Shore Cord
12V Fuse Panel
45 Amp 12V Converter / Battery Charger
5) 120V 15A Recept
Upgrade to 3 Way Light Switches (Pair)

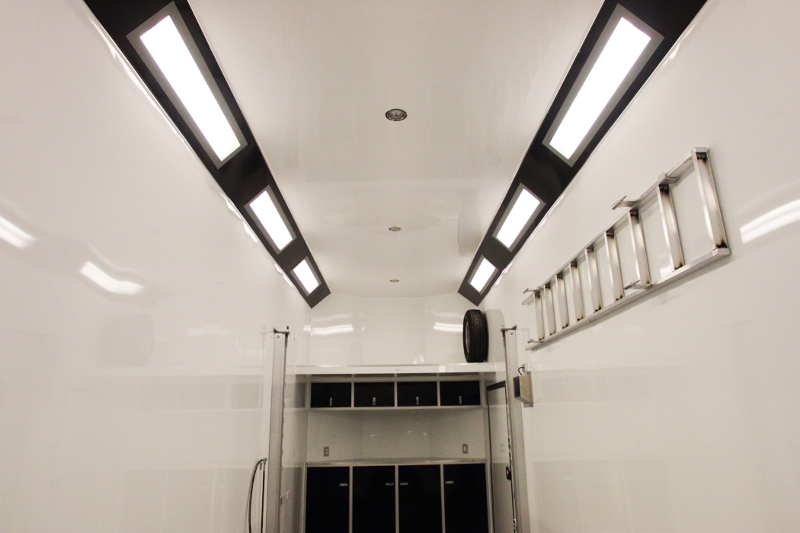

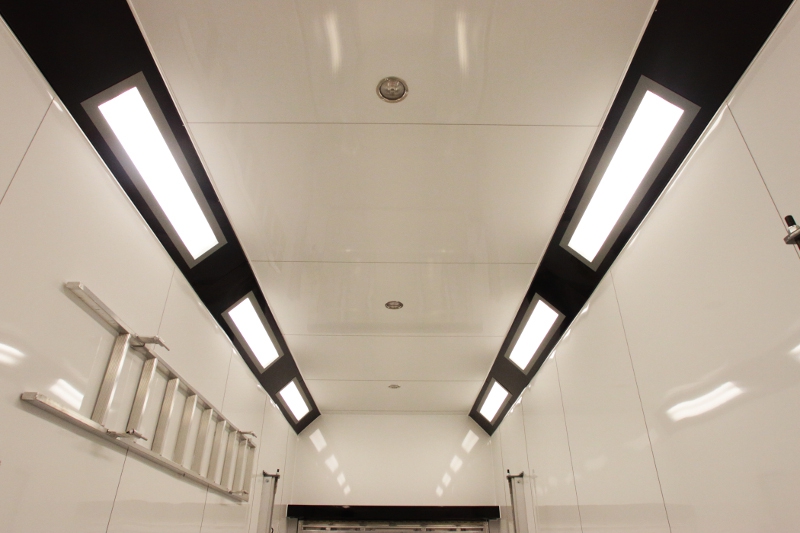

8) 120V 48" Fluorescent Light Upgraded to Light Mounted at 45 Degrees on Cove
Side Mount LED Turn Signal/Clearance and Turn Combo (Pair)
2) 120V 500W Quartz Halogen Light

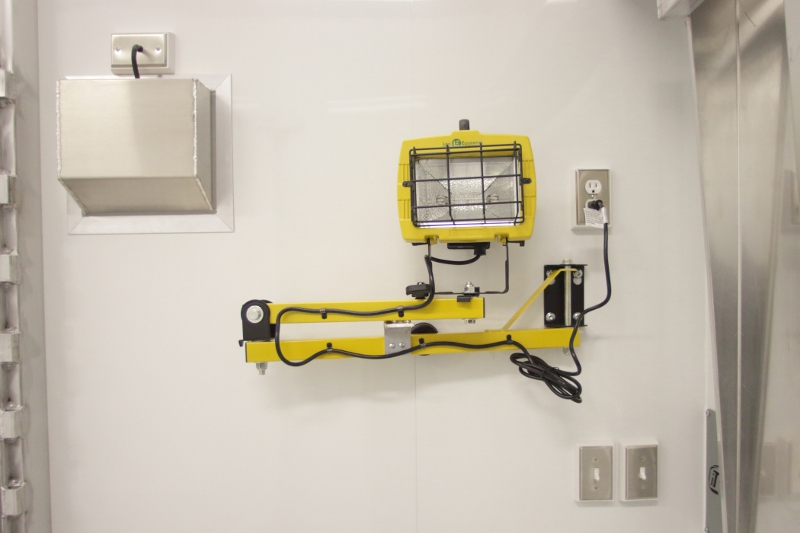

1) 120V 500W Quartz Swing-Out Light at Rear Ramp Door
2) Additional 5,000lb. D-Rings – Recessed

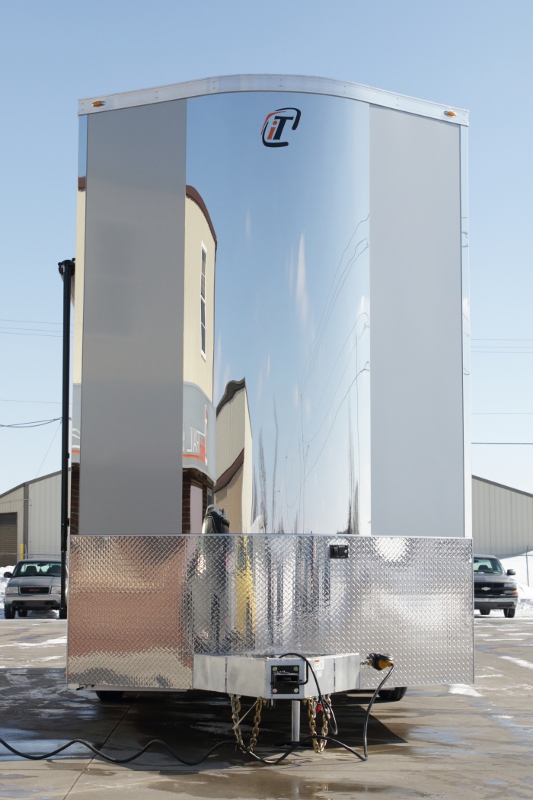

Add Mirror Finish Stainless Steel Front Verticals on Wedge

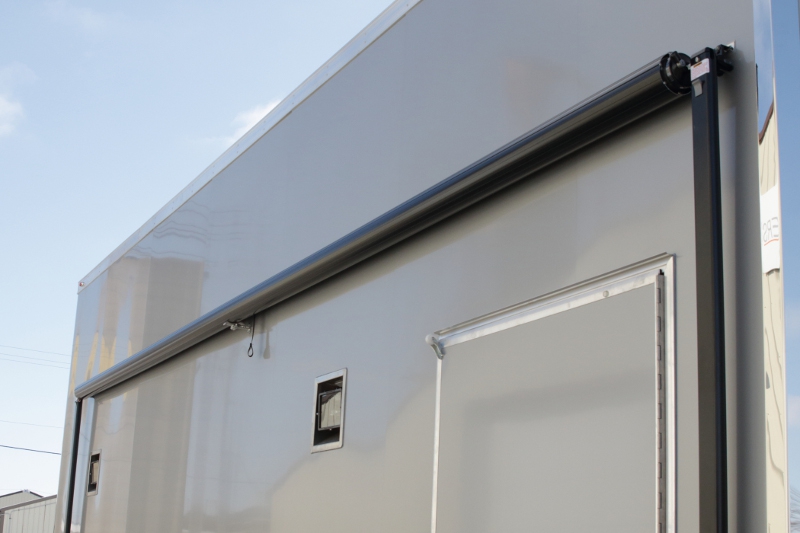

23' Dometic Manual Awning w/ Weathershield
In Floor Winch Box w/ Pulley - Angled Mount
4,000 lb. Winch w/ Wireless Remote Control & Synthetic Rope
90” Rear Door Opening
Upgrade to .050 Exterior Aluminum
Stainless Steel Rear Header
Upgrade to 11'4" Interior
Upgrade to 2' Wedge
Wedge Nose Upper Aluminum Cabinet Straight Across - Up to Full Depth
Wedge Nose Lower Aluminum Cabinet Straight Across - Up to Full Depth
5’ Light Duty Attic w/ Matching Floor
Removable Interior Ladder w/ Interior Hangers - Access to Attic
Rear Caster Wheels
Weight Distribution Prep - Blocks for Wedge
Spare ST235/80R16 on Steel Wheel
6) Upgrade to Aluminum 16" Wheel From 16" Steel Wheel
Spare Tire Wall Mount
Upgrade to 48" 405 Series Entrance Door
Add Slideout Aluminum Step
Upgrade to Full Width Ramp Extension Up to 48" Long w/ 3" Bumpers
30 Amp Electrical Service Package
Motorbase Plug
25' Shore Cord
12V Fuse Panel
45 Amp 12V Converter / Battery Charger
5) 120V 15A Recept
Upgrade to 3 Way Light Switches (Pair)
8) 120V 48" Fluorescent Light Upgraded to Light Mounted at 45 Degrees on Cove
Side Mount LED Turn Signal/Clearance and Turn Combo (Pair)
2) 120V 500W Quartz Halogen Light
1) 120V 500W Quartz Swing-Out Light at Rear Ramp Door
2) Additional 5,000lb. D-Rings – Recessed
Add Mirror Finish Stainless Steel Front Verticals on Wedge
23' Dometic Manual Awning w/ Weathershield
In Floor Winch Box w/ Pulley - Angled Mount
4,000 lb. Winch w/ Wireless Remote Control & Synthetic Rope
90” Rear Door Opening
